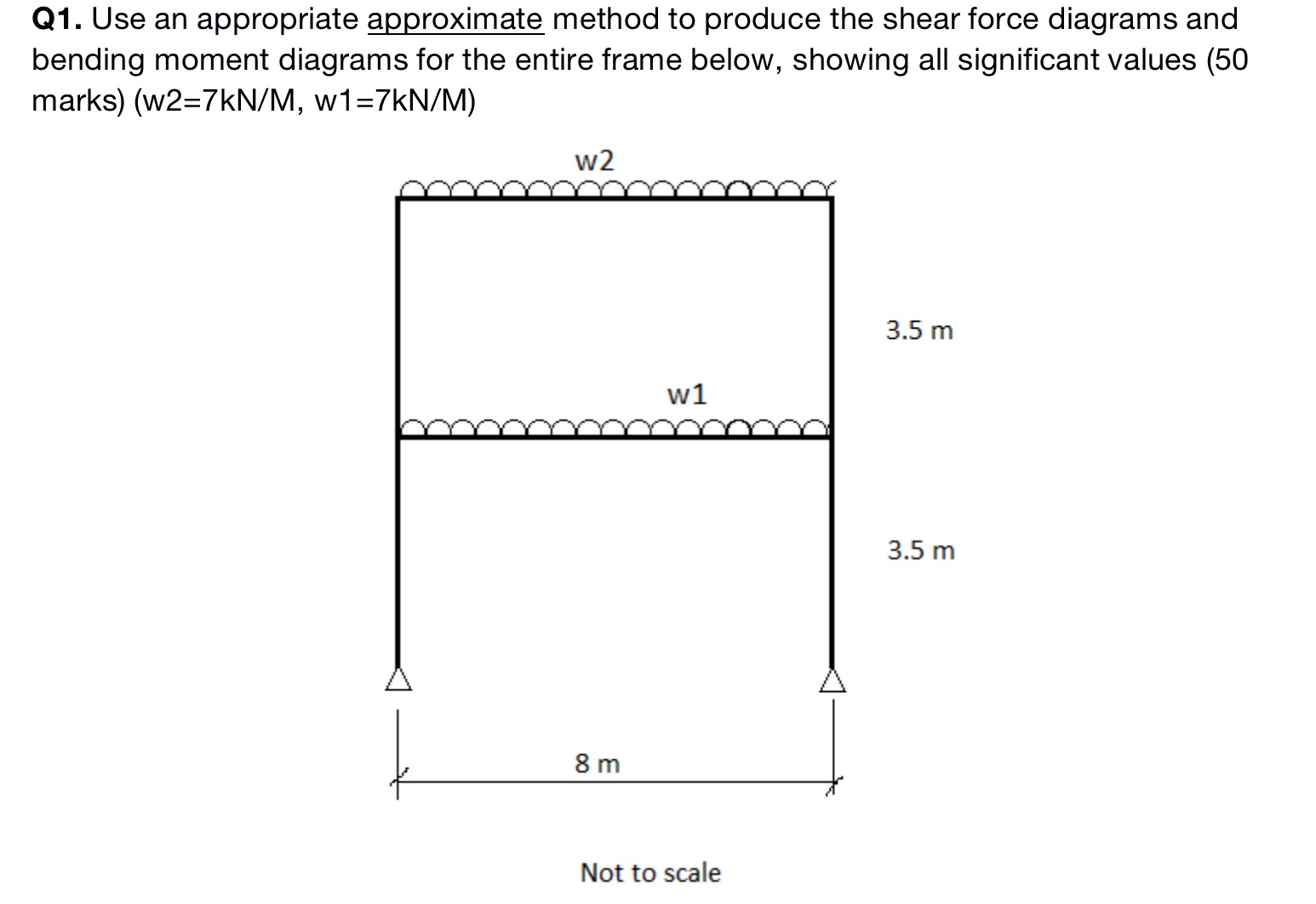

Q1. Use an appropriate approximate method to produce the shear force diagrams and bending moment diagrams for the entire frame below, showing all significant values (50 marks) (w2=7kN/M, w1=7kN/M) w2 3.5 m 3.5 m w1 8m Not to scale
