6. A steel pipe with an outside diameter of 114.6 mm and an inside diameter of 102.6 mm supports the loadings shown in F

[answerhappygod]

6 A Steel Pipe With An Outside Diameter Of 114 6 Mm And An Inside Diameter Of 102 6 Mm Supports The Loadings Shown In F 1 (383.27 KiB) Viewed 30 times

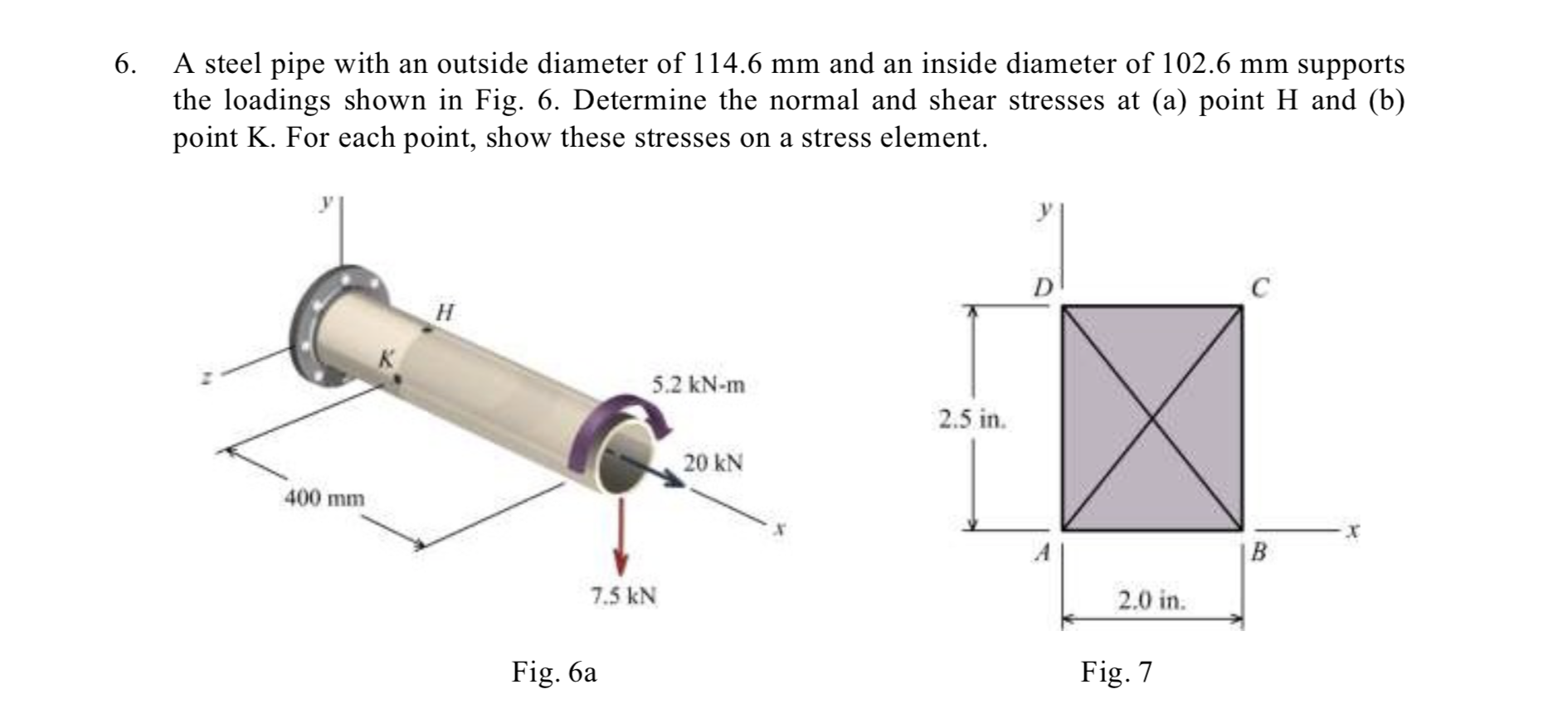

6. A steel pipe with an outside diameter of 114.6 mm and an inside diameter of 102.6 mm supports the loadings shown in Fig. 6. Determine the normal and shear stresses at (a) point H and (b) point K. For each point, show these stresses on a stress element. D C H 5.2 kN-m 20 KN 400 mm 7.5 kN Fig. 6a 2.5 in. 2.0 in. Fig. 7 B
