3. A tee-shaped flexural member (Fig. 3a) is subjected to an internal axial force of 2,800 lb, an internal shear force o

[answerhappygod]

3 A Tee Shaped Flexural Member Fig 3a Is Subjected To An Internal Axial Force Of 2 800 Lb An Internal Shear Force O 1 (242.83 KiB) Viewed 18 times

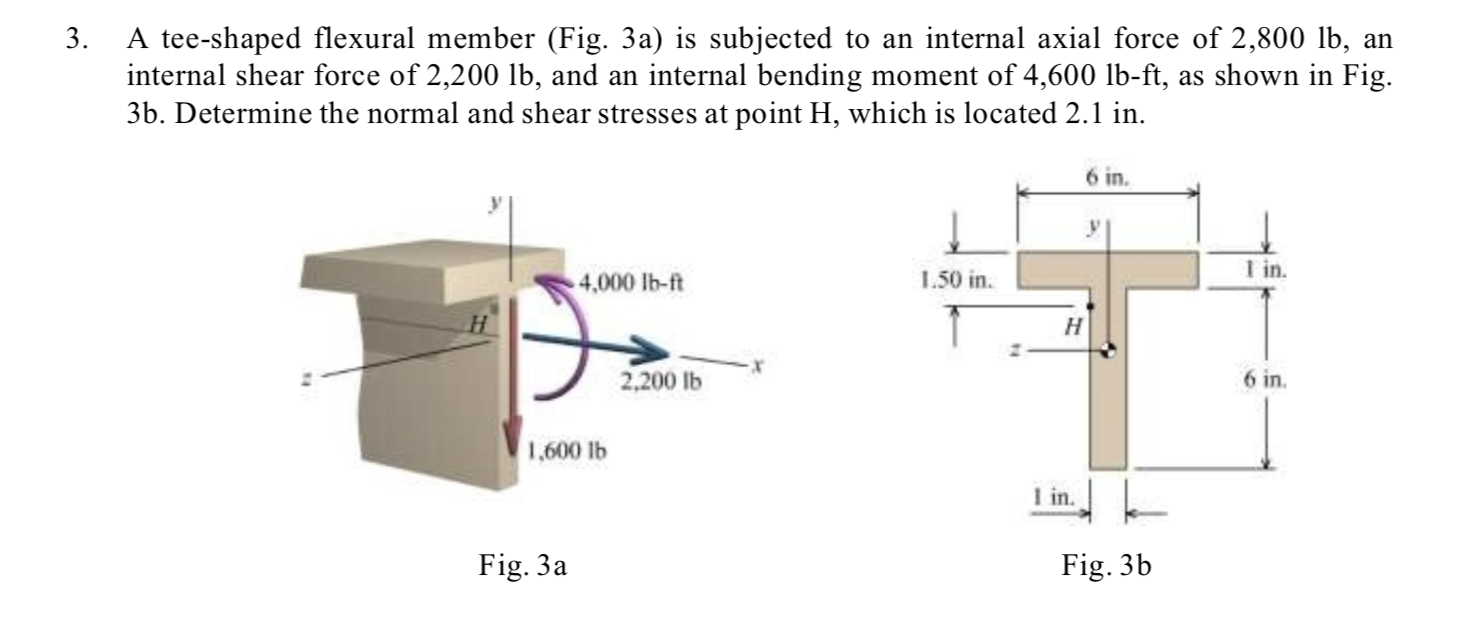

3. A tee-shaped flexural member (Fig. 3a) is subjected to an internal axial force of 2,800 lb, an internal shear force of 2,200 lb, and an internal bending moment of 4,600 lb-ft, as shown in Fig. 3b. Determine the normal and shear stresses at point H, which is located 2.1 in. 6 in. 1 in. 4,000 lb-ft 1.50 in. 6 in. 1,600 lb Fig. 3a 2,200 lb H 1 in. Fig. 3b
