2. = A solid compound shaft consists of segment (1), which has a diameter of 40 mm, and segment (2), which has a diamete

[answerhappygod]

2 A Solid Compound Shaft Consists Of Segment 1 Which Has A Diameter Of 40 Mm And Segment 2 Which Has A Diamete 1 (229.32 KiB) Viewed 21 times

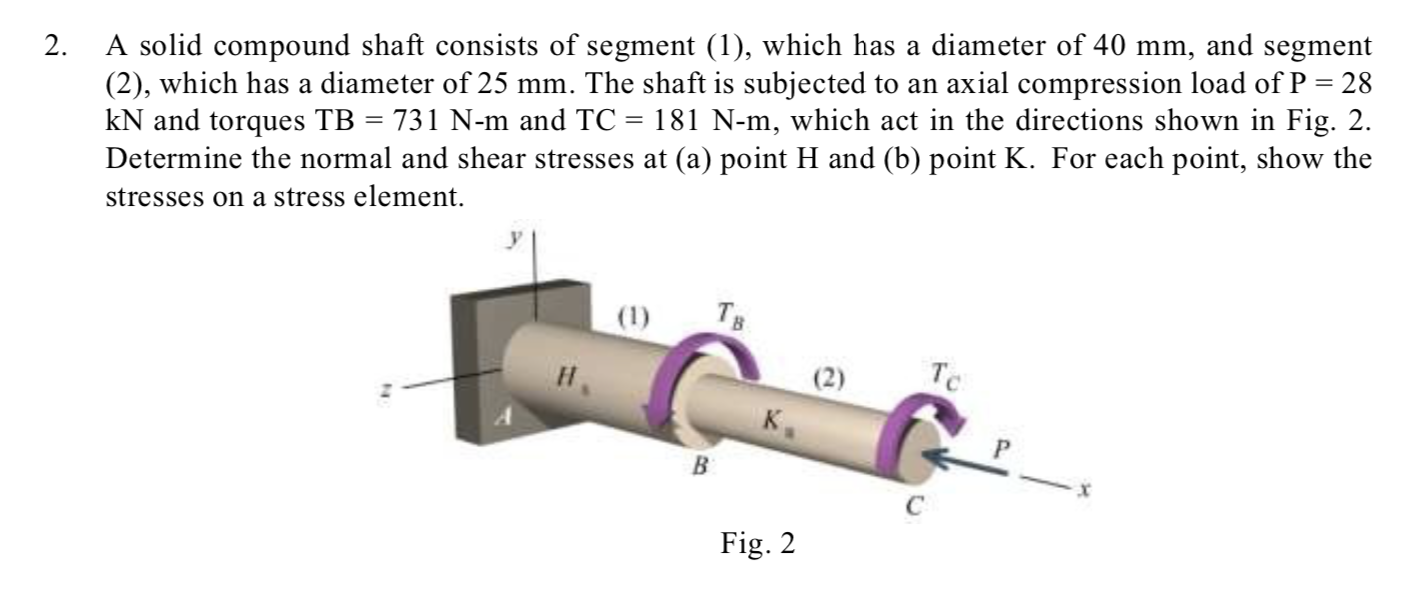

2. = A solid compound shaft consists of segment (1), which has a diameter of 40 mm, and segment (2), which has a diameter of 25 mm. The shaft is subjected to an axial compression load of P = 28 kN and torques TB: 731 N-m and TC = 181 N-m, which act in the directions shown in Fig. 2. Determine the normal and shear stresses at (a) point H and (b) point K. For each point, show the stresses on a stress element. (1) TB To B K Fig. 2 (2) X
