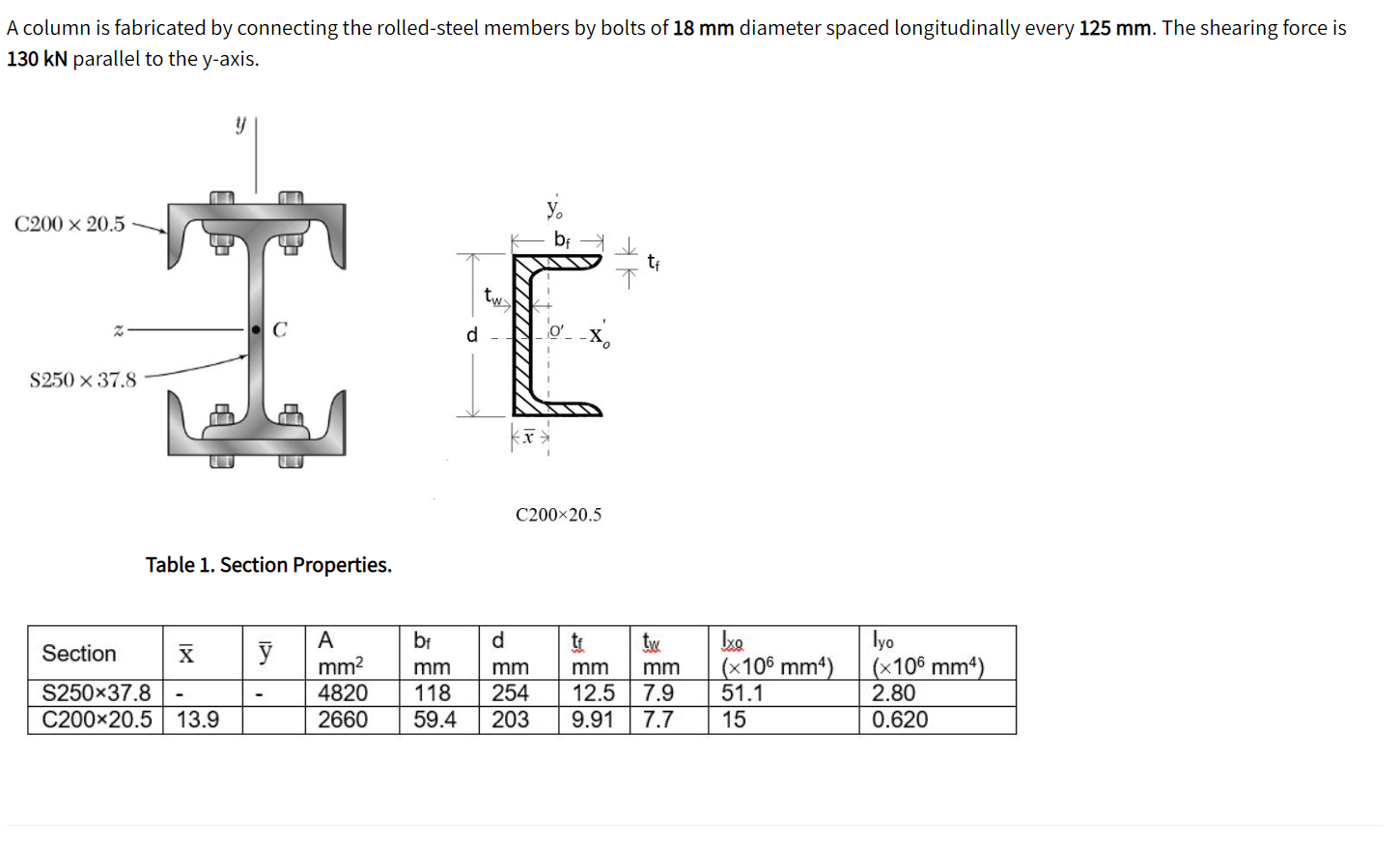

A column is fabricated by connecting the rolled-steel members by bolts of 18 mm diameter spaced longitudinally every 125 mm. The shearing force is 130 kN parallel to the y-axis. y C200 x 20.5 E C200×20.5 bf d tf mm mm mm mm 118 254 12.5 7.9 59.4 203 9.91 7.7 S250 x 37.8 LINET с Table 1. Section Properties. A X y mm² 4820 2660 Section S250×37.8 C200x20.5 13.9 d tw- tw ENN Ixo (x106 mm²) 51.1 15 lyo (x106 mm4) 2.80 0.620
a) Determine the 2nd moment of Inertia Izz = x106 mm4 b) Determine the shearing force in each bolt. Fbolt= KN Determine the average shearing stress in the bolts. Tboit = MPa Submit part Unanswered Submit part Unanswered Submit part Unanswered
