Use Force Method to analyze the indeterminate steel frame in Figure 3, and determine the horizontal support reaction at

Post by answerhappygod »

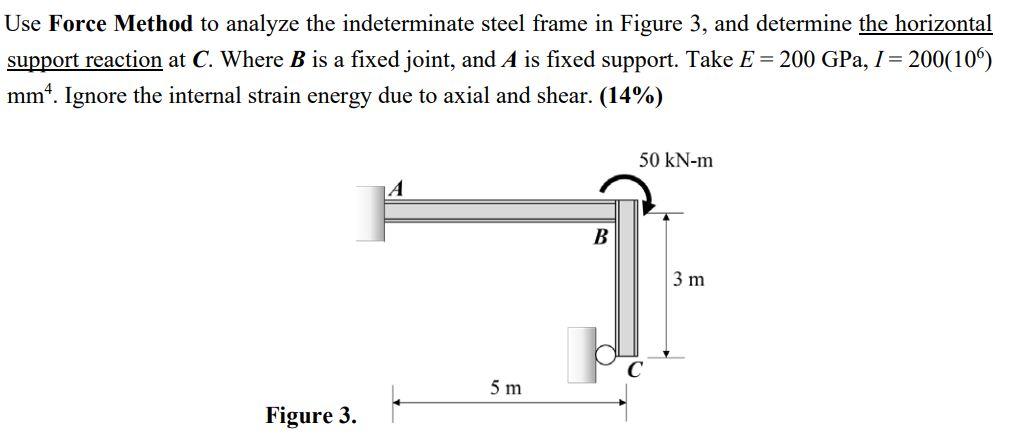

Use Force Method To Analyze The Indeterminate Steel Frame In Figure 3 And Determine The Horizontal Support Reaction At 1
Use Force Method To Analyze The Indeterminate Steel Frame In Figure 3 And Determine The Horizontal Support Reaction At 1 (39.09 KiB) Viewed 27 times
Use Force Method to analyze the indeterminate steel frame in Figure 3, and determine the horizontal support reaction at C. Where B is a fixed joint, and A is fixed support. Take E = 200 GPa, I = 200(106) mm. Ignore the internal strain energy due to axial and shear. (14%) 50 kN-m A 3 m Figure 3. 5 m B
