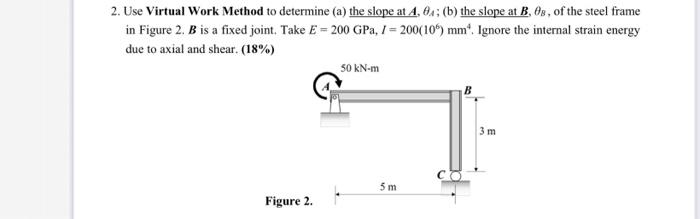

2. Use Virtual Work Method to determine (a) the slope at A, 64; (b) the slope at B, 08, of the steel frame in Figure 2.
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
2. Use Virtual Work Method to determine (a) the slope at A, 64; (b) the slope at B, 08, of the steel frame in Figure 2.
2. Use Virtual Work Method to determine (a) the slope at A, 64; (b) the slope at B, 08, of the steel frame in Figure 2. B is a fixed joint. Take E = 200 GPa, I=200(10%) mm². Ignore the internal strain energy due to axial and shear. (18%) 50 kN-m B Figure 2. 5m 3m
