1. Determine the following for the L 203X152X14.3 bolted with 30 mm bolts staggered as shown. Use A992 Gr. 50. a. Net Te

[answerhappygod]

1 Determine The Following For The L 203x152x14 3 Bolted With 30 Mm Bolts Staggered As Shown Use A992 Gr 50 A Net Te 1 (77.81 KiB) Viewed 41 times

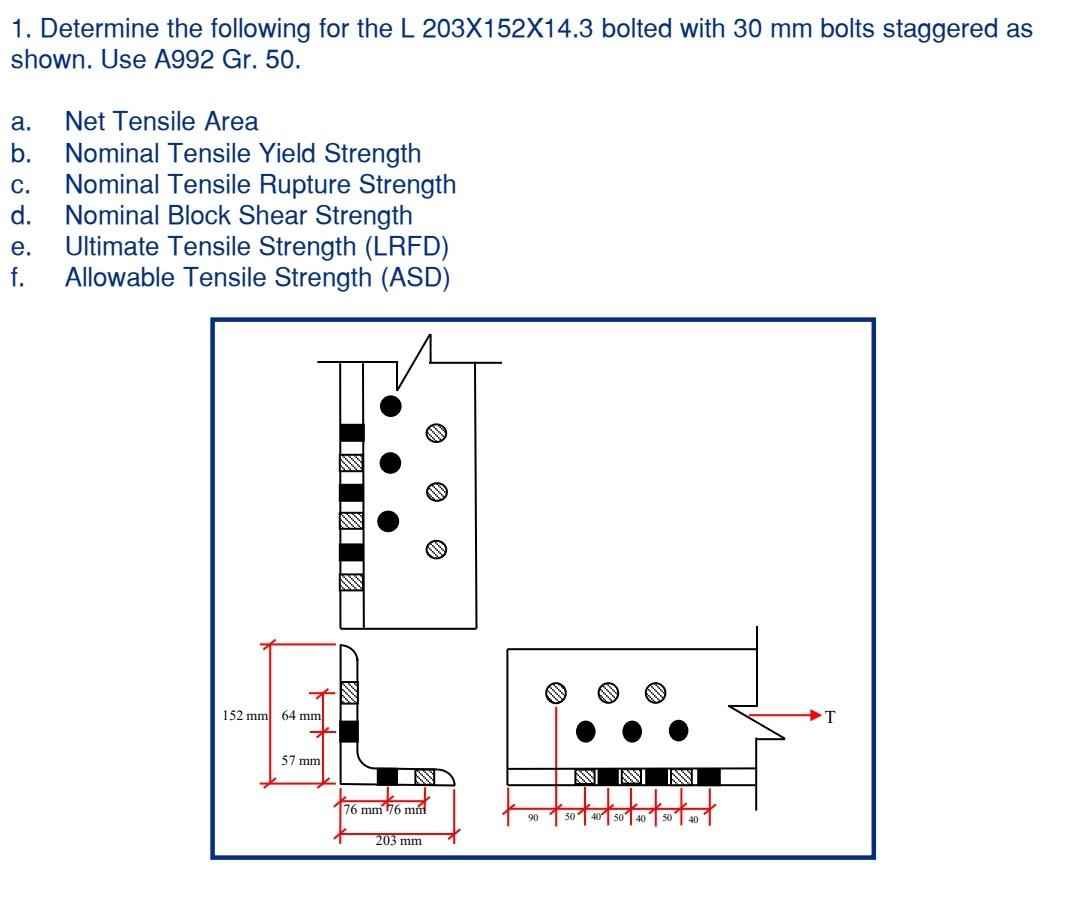

1. Determine the following for the L 203X152X14.3 bolted with 30 mm bolts staggered as shown. Use A992 Gr. 50. a. Net Tensile Area b. Nominal Tensile Yield Strength C. Nominal Tensile Rupture Strength Nominal Block Shear Strength Ultimate Tensile Strength (LRFD) Allowable Tensile Strength (ASD) d. e. f. 152 mm 64 mm T 57 mm ܘ ܡ ܘ ܩ M № 76 mm 76 mm 203 mm 90 N S INI totot
