A circular hollow section (CHS) column used in a structural system is of size 165.1x5.4 CHS and grade C250LO. The column

[answerhappygod]

A Circular Hollow Section Chs Column Used In A Structural System Is Of Size 165 1x5 4 Chs And Grade C250lo The Column 1 (82.23 KiB) Viewed 48 times

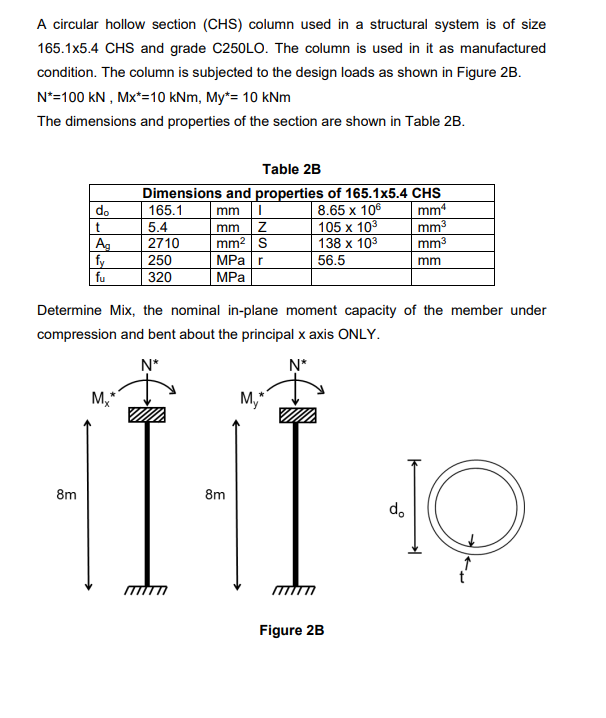

A circular hollow section (CHS) column used in a structural system is of size 165.1x5.4 CHS and grade C250LO. The column is used in it as manufactured condition. The column is subjected to the design loads as shown in Figure 2B. N*=100 kN, Mx*=10 kNm, My*= 10 kNm The dimensions and properties of the section are shown in Table 2B. Table 2B Dimensions and properties of 165.1x5.4 CHS do 165.1 mm I 8.65 x 106 mm t 5.4 mm | Z 105 x 10³ mm³ Ag 2710 mm² S 138 x 103 mm³ fy 250 MPa r 56.5 mm fu 320 MPa Determine Mix, the nominal in-plane moment capacity of the member under compression and bent about the principal x axis ONLY. N* N* M₂ My* 8m 8m Figure 2B do O
