A retaining wall retains z m of sand with properties shown in the below figure. If z=6 m, the active earth force (total

Post by answerhappygod »

A Retaining Wall Retains Z M Of Sand With Properties Shown In The Below Figure If Z 6 M The Active Earth Force Total 1
A Retaining Wall Retains Z M Of Sand With Properties Shown In The Below Figure If Z 6 M The Active Earth Force Total 1 (14.73 KiB) Viewed 39 times

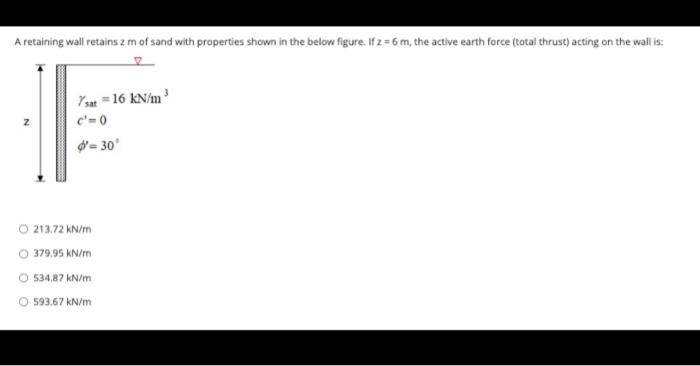

A retaining wall retains z m of sand with properties shown in the below figure. If z=6 m, the active earth force (total thrust) acting on the wall is: 7 sat = 16 kN/m³ Z c'=0 O 213.72 kN/m 379.95 kN/m 534.87 kN/m 593.67 kN/m -30°
