A beam with a support settlement Enample 6.25 kN/m 4m 8 Ac de I = 9.34x10m²" ·2.5m 2.5m →! I = 12.51 x 155 in 4 T = 8340

Post by answerhappygod »

A Beam With A Support Settlement Enample 6 25 Kn M 4m 8 Ac De I 9 34x10m 2 5m 2 5m I 12 51 X 155 In 4 T 8340 1
A Beam With A Support Settlement Enample 6 25 Kn M 4m 8 Ac De I 9 34x10m 2 5m 2 5m I 12 51 X 155 In 4 T 8340 1 (46.52 KiB) Viewed 41 times

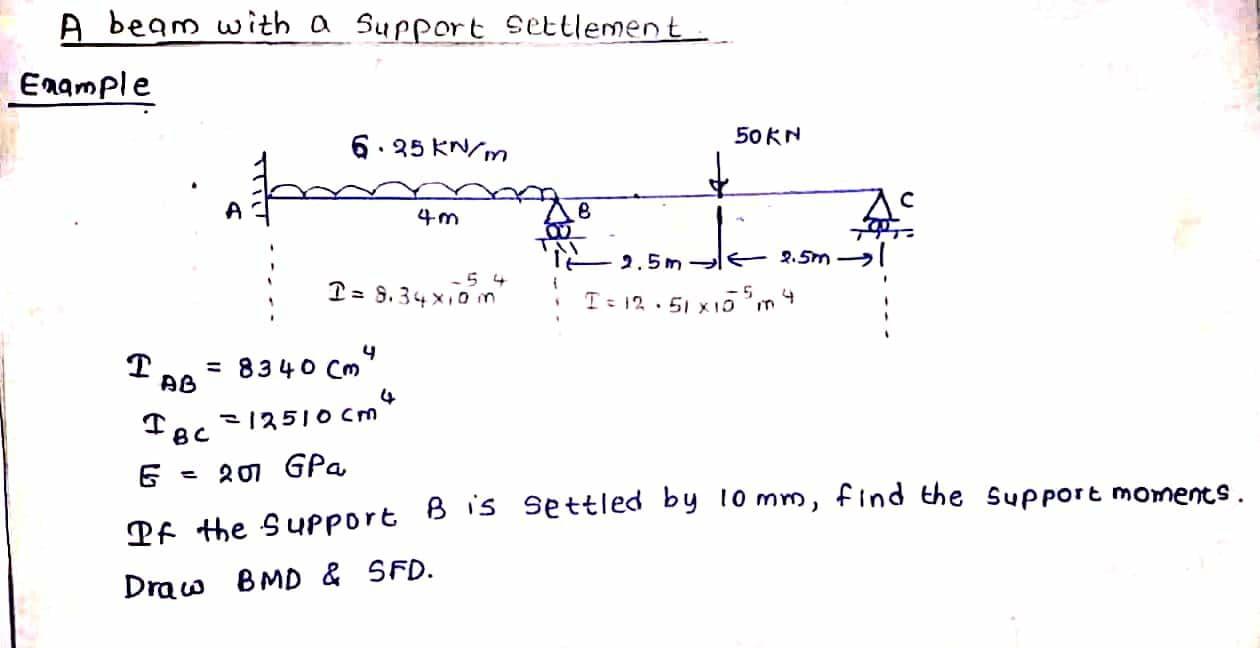

A beam with a support settlement Enample 6.25 kN/m 4m 8 Ac de I = 9.34x10m²" ·2.5m 2.5m →! I = 12.51 x 155 in 4 T = 8340 Cm4 AB 4 IBC =12510 cm G = 207 GPa If the Support B is settled by 10 mm, find the support moments. Draw BMD & SFD. 50 KN
