X Incorrect A force of P₂-930 N is exerted on control arm BC, which is securely attached to the solid 21 mm diameter sha

Post by answerhappygod »

X Incorrect A Force Of P 930 N Is Exerted On Control Arm Bc Which Is Securely Attached To The Solid 21 Mm Diameter Sha 1
X Incorrect A Force Of P 930 N Is Exerted On Control Arm Bc Which Is Securely Attached To The Solid 21 Mm Diameter Sha 1 (42.29 KiB) Viewed 45 times

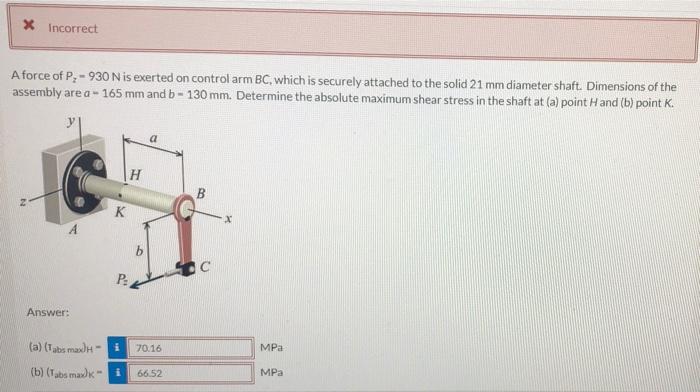

X Incorrect A force of P₂-930 N is exerted on control arm BC, which is securely attached to the solid 21 mm diameter shaft. Dimensions of the assembly are a-165 mm and b- 130 mm. Determine the absolute maximum shear stress in the shaft at (a) point Hand (b) point K. a B K H 9 P Answer: (a) (Tabs max)H" i 70.16 (b) (Tabs max) i 66.52 C MPa MPa
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
