Q21. A 6-m-long vertical cantilever, a 100-mm-nominal-diameter standard steel pipe, supports a 2400- N weight attached a

[answerhappygod]

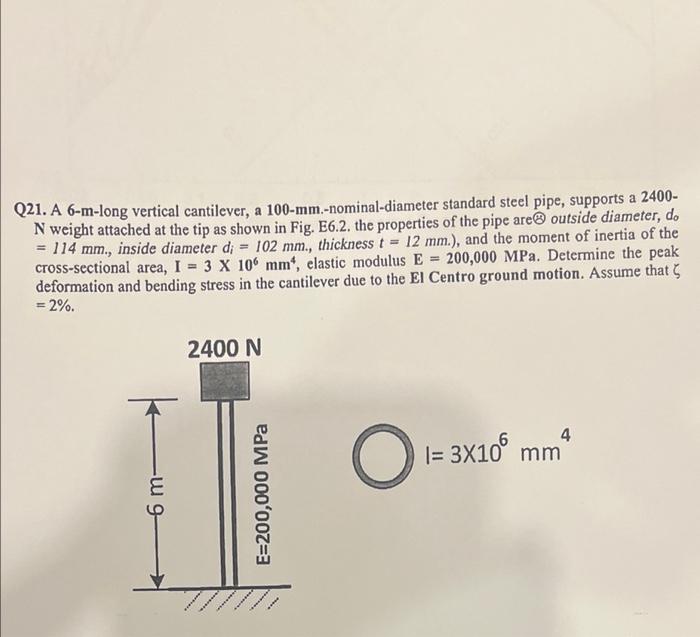

Q21 A 6 M Long Vertical Cantilever A 100 Mm Nominal Diameter Standard Steel Pipe Supports A 2400 N Weight Attached A 1 (37.9 KiB) Viewed 50 times

Q21. A 6-m-long vertical cantilever, a 100-mm-nominal-diameter standard steel pipe, supports a 2400- N weight attached at the tip as shown in Fig. E6.2. the properties of the pipe are outside diameter, do 12 mm.), and the moment of inertia of the = 114 mm., inside diameter d; = 102 mm., thickness t = 200,000 MPa. Determine the peak cross-sectional area, I = 3 X 106 mm, elastic modulus E = deformation and bending stress in the cantilever due to the El Centro ground motion. Assume that = 2%. 2400 N 4 = 3x10 mm ســـــه -6 m- E=200,000 MPa
