3) Tensile tests are applied on two type of fibers SiC and Al2O3, their densities are respectively 3.3 Mg/m³ and 2.6 Mg/

[answerhappygod]

3 Tensile Tests Are Applied On Two Type Of Fibers Sic And Al2o3 Their Densities Are Respectively 3 3 Mg M And 2 6 Mg 1 (110.5 KiB) Viewed 41 times

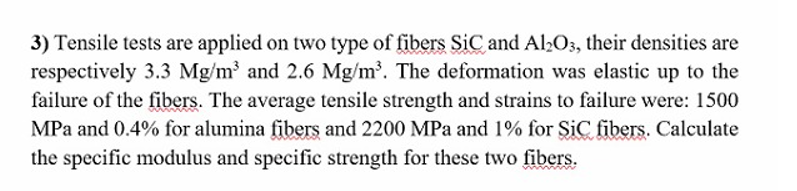

3) Tensile tests are applied on two type of fibers SiC and Al2O3, their densities are respectively 3.3 Mg/m³ and 2.6 Mg/m³. The deformation was elastic up to the failure of the fibers. The average tensile strength and strains to failure were: 1500 MPa and 0.4% for alumina fibers and 2200 MPa and 1% for SiC fibers. Calculate the specific modulus and specific strength for these two fibers.
