TENSION OR COMPRESSION ED L 3 m 5m The truss is supported by a ball and socket joint at B and thin links at E, C and D.

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

TENSION OR COMPRESSION ED L 3 m 5m The truss is supported by a ball and socket joint at B and thin links at E, C and D.

Post by answerhappygod »

Tension Or Compression Ed L 3 M 5m The Truss Is Supported By A Ball And Socket Joint At B And Thin Links At E C And D 1
Tension Or Compression Ed L 3 M 5m The Truss Is Supported By A Ball And Socket Joint At B And Thin Links At E C And D 1 (31.68 KiB) Viewed 39 times

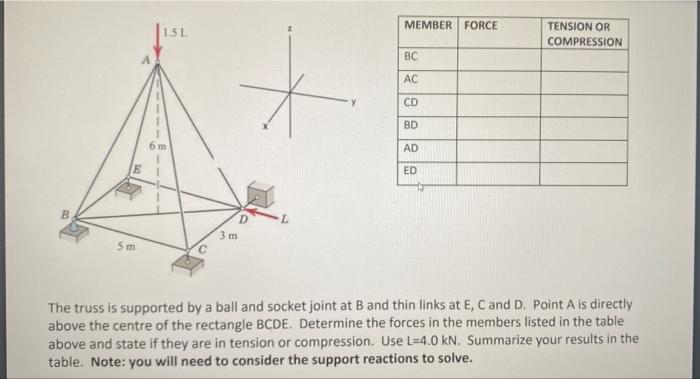

TENSION OR COMPRESSION ED L 3 m 5m The truss is supported by a ball and socket joint at B and thin links at E, C and D. Point A is directly above the centre of the rectangle BCDE. Determine the forces in the members listed in the table above and state if they are in tension or compression. Use L-4.0 kN. Summarize your results in the table. Note: you will need to consider the support reactions to solve. 1.51 m D MEMBER FORCE BC 28228 AC CD BD AD
