Problem (3) (50 Points) Using the Stiffness Method, analyze the frame shown below and draw the shear and bending moment

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Problem (3) (50 Points) Using the Stiffness Method, analyze the frame shown below and draw the shear and bending moment

Post by answerhappygod »

Problem 3 50 Points Using The Stiffness Method Analyze The Frame Shown Below And Draw The Shear And Bending Moment 1
Problem 3 50 Points Using The Stiffness Method Analyze The Frame Shown Below And Draw The Shear And Bending Moment 1 (19.86 KiB) Viewed 37 times

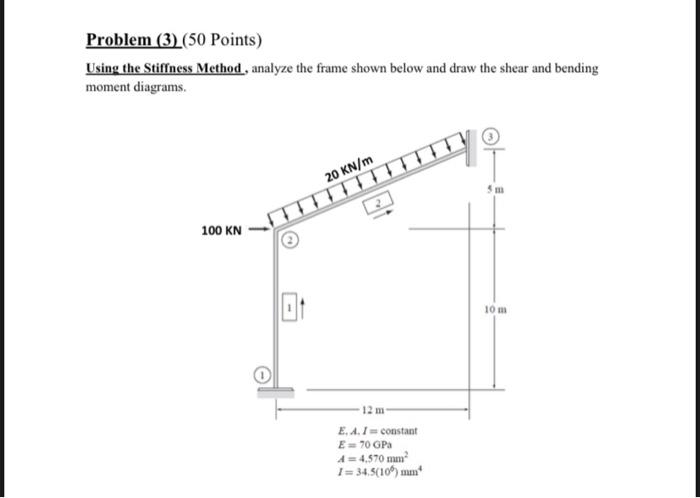

Problem (3) (50 Points) Using the Stiffness Method, analyze the frame shown below and draw the shear and bending moment diagrams. 20 KN/m 5 m 100 KN 10 m 12 m E. A. I constant E = 70 GPa A=4,570 mm² 1= 34.5(10%) mm*
