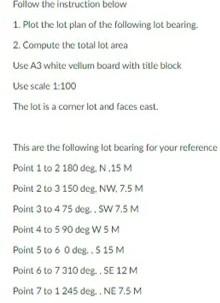

Follow the instruction below 1. Plot the lot plan of the following lot bearing. 2. Compute the total lot area Use A3 white vellum board with title block Use scale 1:100 The lot is a corner lot and faces cast. This are the following lot bearing for your reference Point 1 to 2 180 deg. N.15 M Point 2 to 3 150 deg. NW.7.5 M Point 3 to 4 75 deg.. SW 7.5 M Point 4 to 5 90 deg W 5M Point 5 to 60 deg.. 5 15 M Point 6 to 7 310 deg.. SE 12 M Point 7 to 1 245 deg.. NE 7.5 M

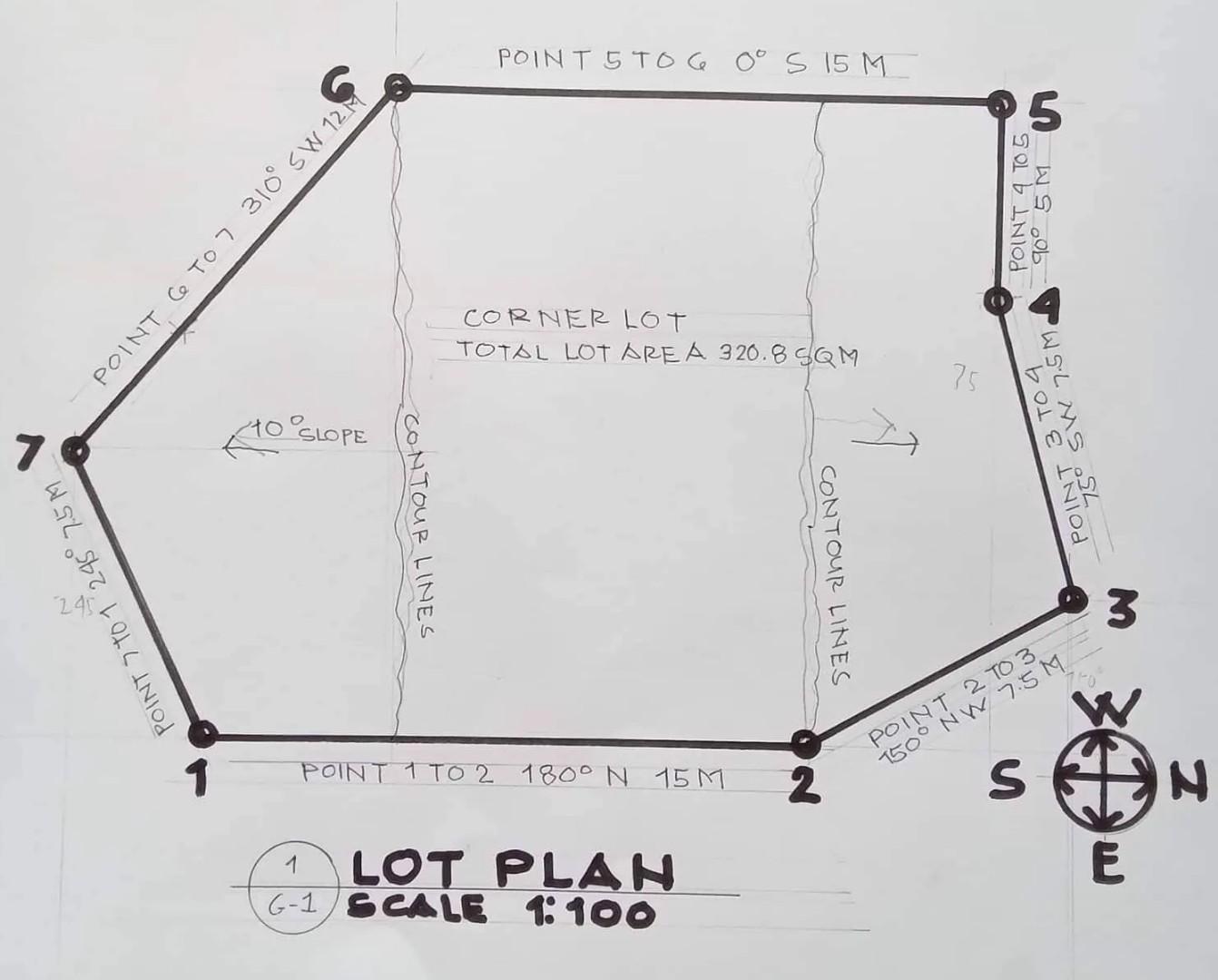

7 POINT 7 TO 1 245 7.5 M 245 1 G POINT & TO 7 310 SW 12 10 SLOPE CONTOUR LINES POINT 5 TOG 0° S 15 M CORNER LOT TOTAL LOT AREA 320.8 SQM POINT 1 TO 2 180° N 15 M 1 LOT PLAN G-1 SCALE 1:100 CONTOUR LINES N 75 5 POINT 4 TO 5 90° 5 M 4 POINT To 4 Mo 75° POINT 2 TO 3 150° NW 7.5 M S 3 E N
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
