2. (a) Present the shear and moment diagrams for the beam shown as functions of x in the ranges of x = 0-8 m and x = 8-1

Post by answerhappygod »

2 A Present The Shear And Moment Diagrams For The Beam Shown As Functions Of X In The Ranges Of X 0 8 M And X 8 1 1
2 A Present The Shear And Moment Diagrams For The Beam Shown As Functions Of X In The Ranges Of X 0 8 M And X 8 1 1 (29.79 KiB) Viewed 30 times

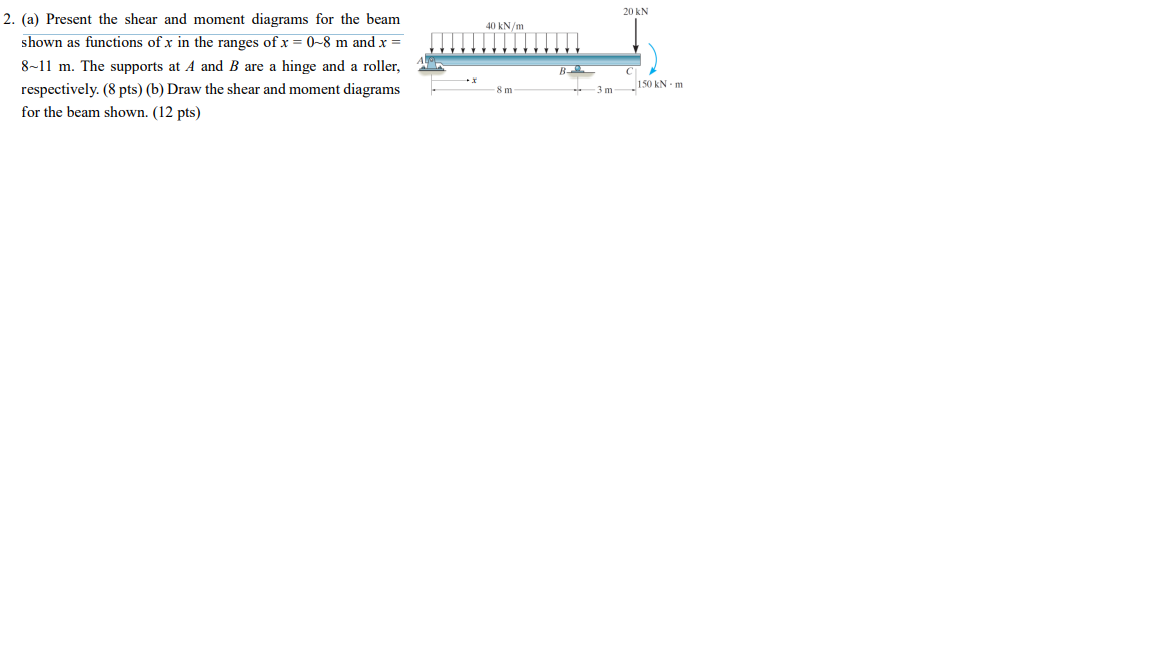

2. (a) Present the shear and moment diagrams for the beam shown as functions of x in the ranges of x = 0-8 m and x = 8-11 m. The supports at A and B are a hinge and a roller, respectively. (8 pts) (b) Draw the shear and moment diagrams for the beam shown. (12 pts) 40 kN/m 8 m -3 m 20 KN CI 150 kN m
