Q2ex6.17 A timber beam of rectangular section (depth x width) 200 mm x 84 mm is simply supported over a span of 3.2 m an

Post by answerhappygod »

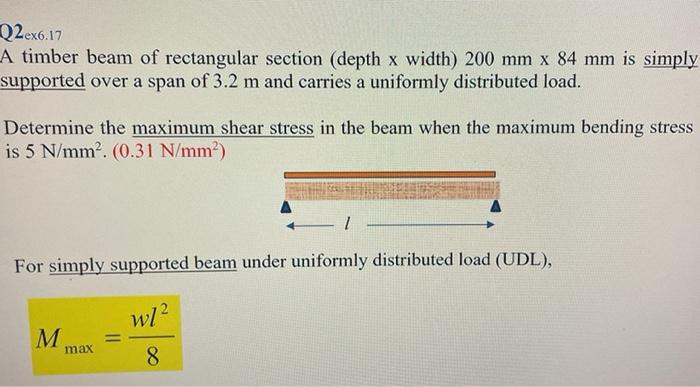

Q2ex6 17 A Timber Beam Of Rectangular Section Depth X Width 200 Mm X 84 Mm Is Simply Supported Over A Span Of 3 2 M An 1
Q2ex6 17 A Timber Beam Of Rectangular Section Depth X Width 200 Mm X 84 Mm Is Simply Supported Over A Span Of 3 2 M An 1 (39.52 KiB) Viewed 77 times
Q2ex6.17 A timber beam of rectangular section (depth x width) 200 mm x 84 mm is simply supported over a span of 3.2 m and carries a uniformly distributed load. Determine the maximum shear stress in the beam when the maximum bending stress is 5 N/mm². (0.31 N/mm²) For simply supported beam under uniformly distributed load (UDL), M = w1² 8 max
