• Support Reactions, ● Shear and Moment Equations. For the last segment use the FBD of the right section, ● Shear and Mo

[answerhappygod]

Support Reactions Shear And Moment Equations For The Last Segment Use The Fbd Of The Right Section Shear And Mo 1 (76.93 KiB) Viewed 49 times

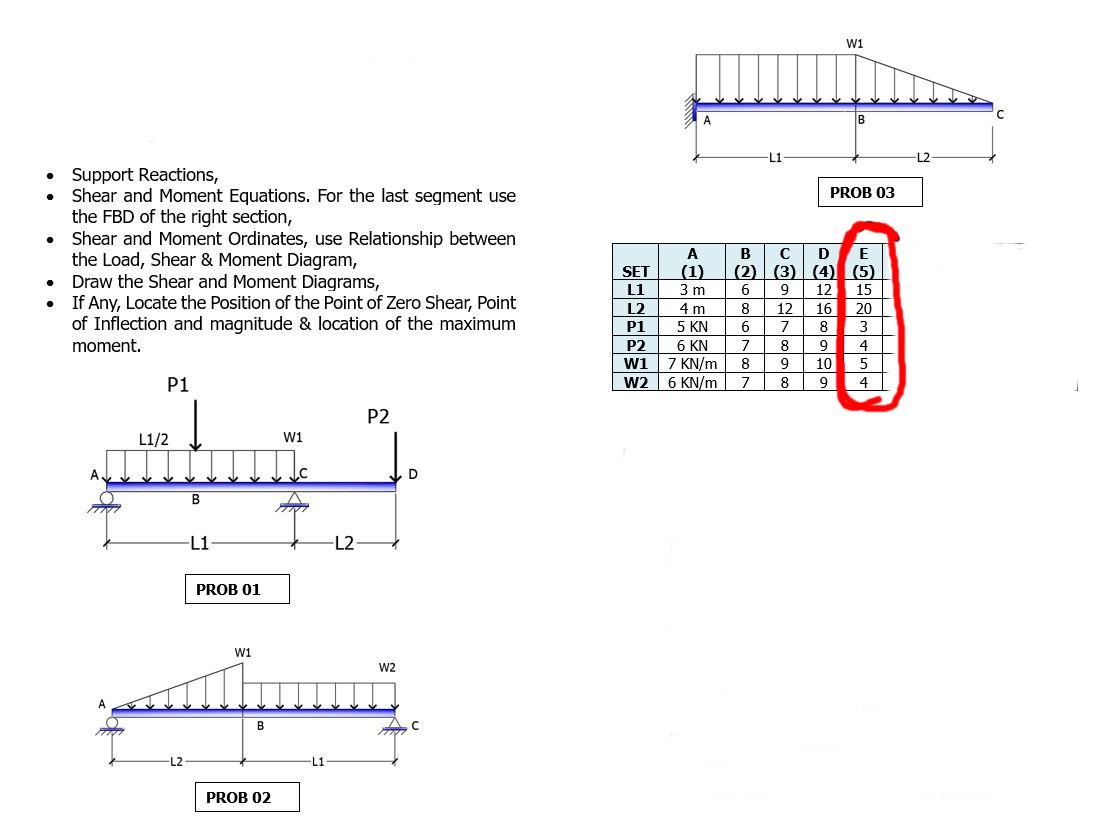

• Support Reactions, ● Shear and Moment Equations. For the last segment use the FBD of the right section, ● Shear and Moment Ordinates, use Relationship between the Load, Shear & Moment Diagram, Draw the Shear and Moment Diagrams, . ● If Any, Locate the Position of the Point of Zero Shear, Point of Inflection and magnitude & location of the maximum moment. P1 P2 W1 L1/2 B -L1- -L2 PROB 01 W1 لللليلللت B C PROB 02 -L2 -L1 W2 D B2686 -L1 A C D SET (1) (2) (3) (4) L1 3m 9 12 L2 4 m 12 16 P1 5 KN 7 8 P2 6 KN 8 9 W1 7 KN/m 9 10 W2 6 KN/m 8 9 7 8 7 W1 B PROB 03 E (5) 15 20 3 4 5 4 -L2
