As shown in Figure 1, the site covers the surrounding area of building on the north campus. Several control stations hav

[answerhappygod]

As Shown In Figure 1 The Site Covers The Surrounding Area Of Building On The North Campus Several Control Stations Hav 1 (850.76 KiB) Viewed 62 times

As Shown In Figure 1 The Site Covers The Surrounding Area Of Building On The North Campus Several Control Stations Hav 2 (89.84 KiB) Viewed 62 times

Work out the coordinates at each station using the traversing method. Check angular and distance misclosure errors. Distribute angular and distance errors if they are within the allowable range.
please help me to solve the calculations of cooridates of A B C D E

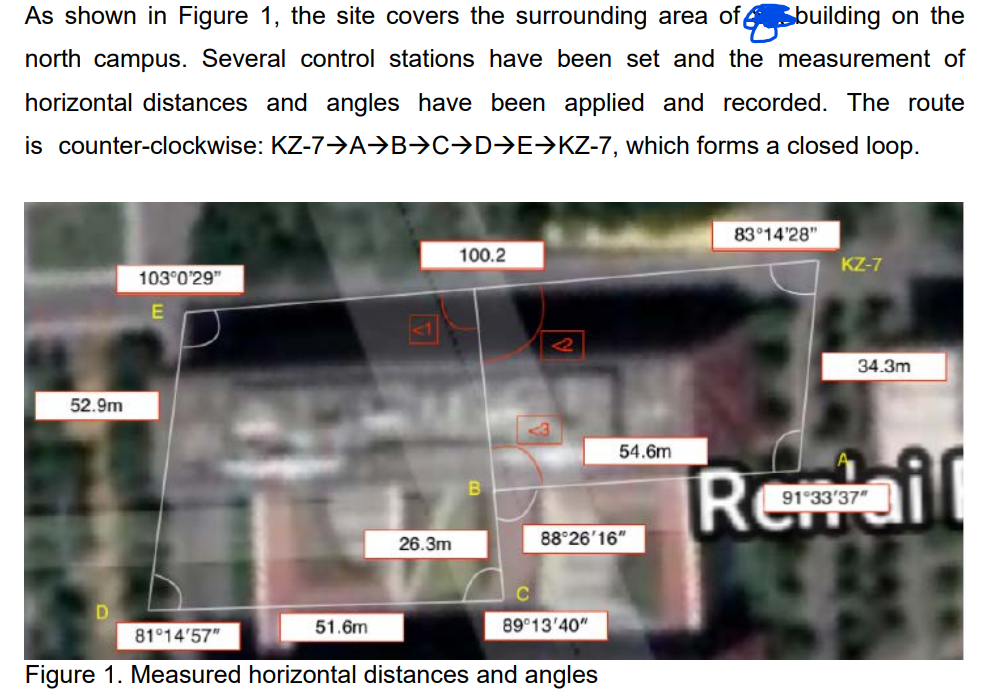

As shown in Figure 1, the site covers the surrounding area of building on the north campus. Several control stations have been set and the measurement of horizontal distances and angles have been applied and recorded. The route is counter-clockwise: KZ-7→A⇒B⇒C⇒D⇒E⇒KZ-7, which forms a closed loop. 83°14'28" 100.2 KZ-7 103°0'29" E B 52.9m 26.3m D 51.6m 89°13'40" 81°14'57" Figure 1. Measured horizontal distances and angles 54.6m 88°26'16" 34.3m Remail 1°33'37"

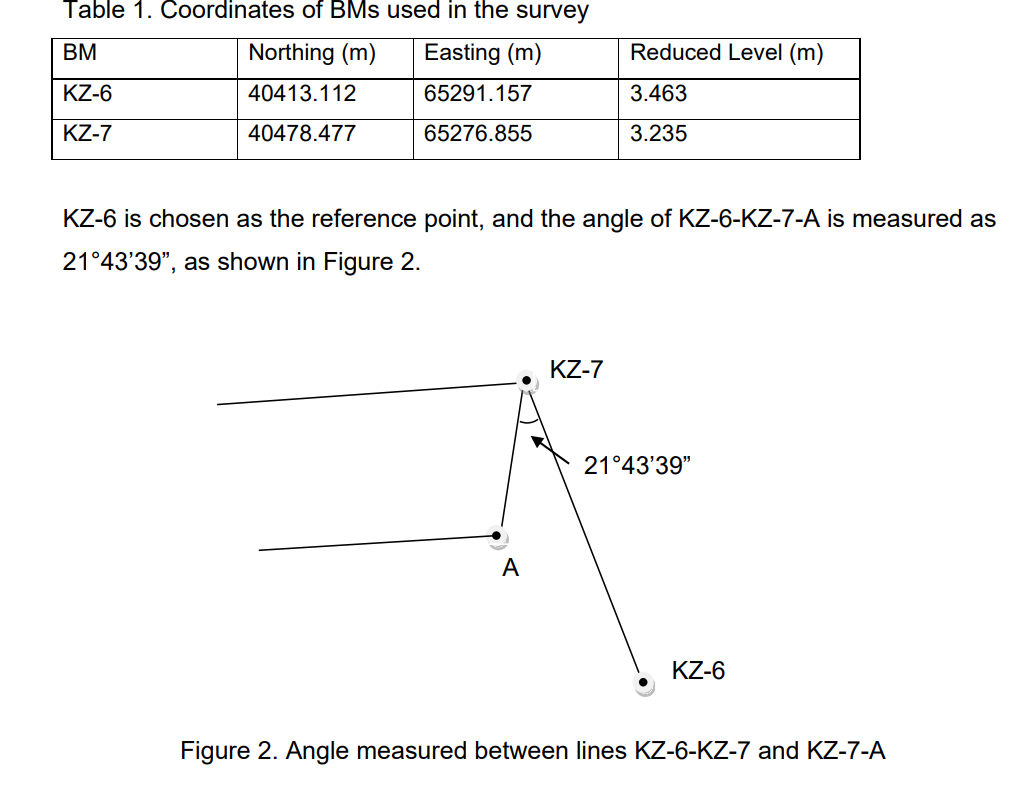

Table 1. Coordinates of BMs used in the survey BM Northing (m) Easting (m) Reduced Level (m) KZ-6 40413.112 65291.157 3.463 KZ-7 40478.477 65276.855 3.235 KZ-6 is chosen as the reference point, and the angle of KZ-6-KZ-7-A is measured as 21°43'39", as shown in Figure 2. KZ-7 A KZ-6 Figure 2. Angle measured between lines KZ-6-KZ-7 and KZ-7-A 21°43'39"
