Solve for total factored load Pu. In this problem, Pu is already given. 1. Pu=3000 KN ● Solve for the gross area of your

[answerhappygod]

Solve For Total Factored Load Pu In This Problem Pu Is Already Given 1 Pu 3000 Kn Solve For The Gross Area Of Your 1 (73.63 KiB) Viewed 57 times

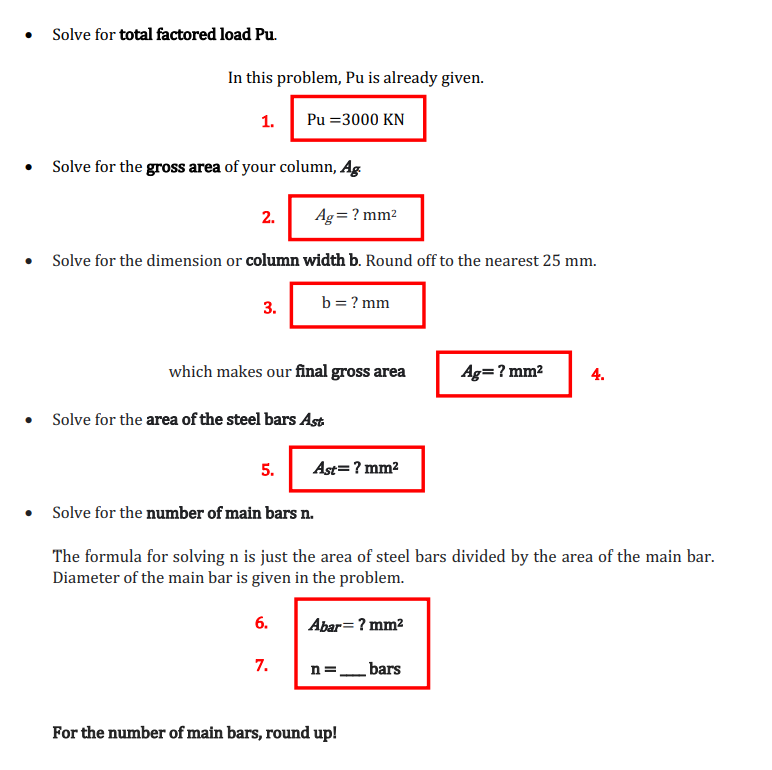

Solve for total factored load Pu. In this problem, Pu is already given. 1. Pu=3000 KN ● Solve for the gross area of your column, Ag 2. Ag = ? mm² ● Solve for the dimension or column width b. Round off to the nearest 25 mm. 3. b = ?mm which makes our final gross area Ag=? mm² 4. Solve for the area of the steel bars Ast 5. Ast=? mm² Solve for the number of main bars n. The formula for solving n is just the area of steel bars divided by the area of the main bar. Diameter of the main bar is given in the problem. 6. Abar= ? mm² 7. n= bars For the number of main bars, round up! ●
