• Support Reactions, Shear and Moment Equations. For the last segment use the FBD of the right section, • Shear and Mome

Post by answerhappygod »

Support Reactions Shear And Moment Equations For The Last Segment Use The Fbd Of The Right Section Shear And Mome 1
Support Reactions Shear And Moment Equations For The Last Segment Use The Fbd Of The Right Section Shear And Mome 1 (66.08 KiB) Viewed 52 times

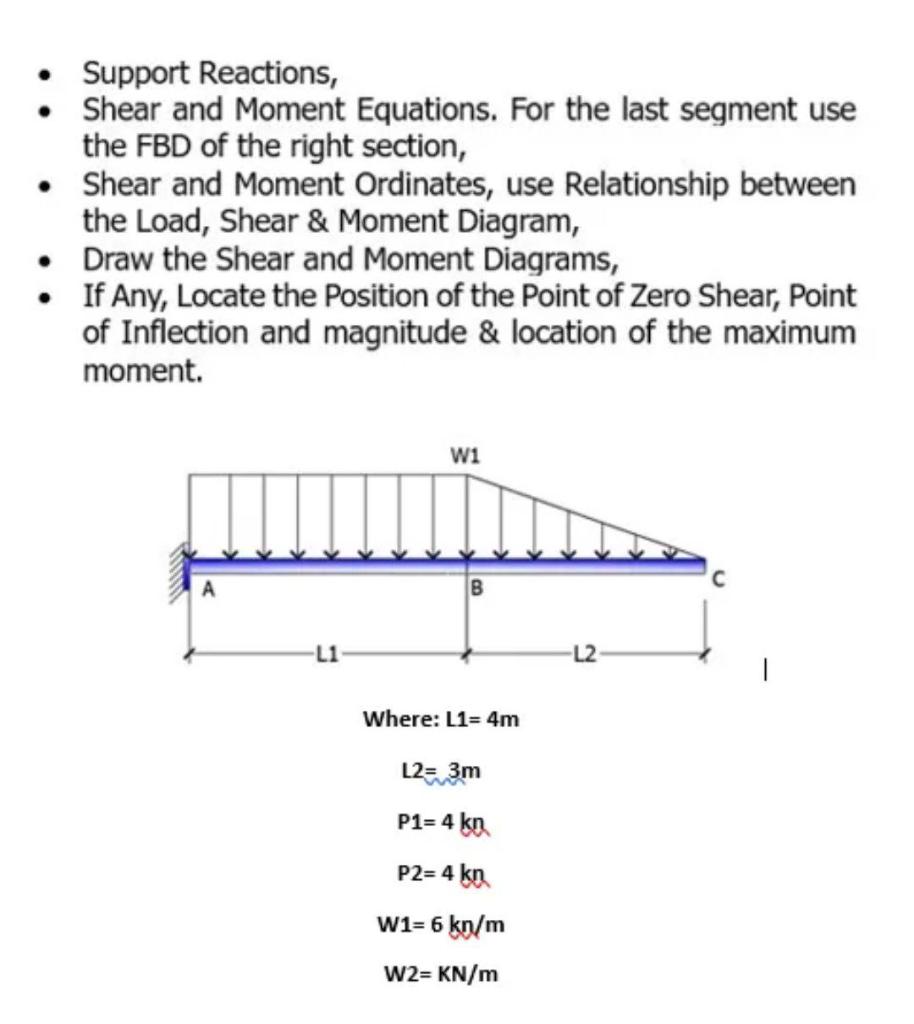

• Support Reactions, Shear and Moment Equations. For the last segment use the FBD of the right section, • Shear and Moment Ordinates, use Relationship between the Load, Shear & Moment Diagram, • Draw the Shear and Moment Diagrams, • If Any, Locate the Position of the Point of Zero Shear, Point of Inflection and magnitude & location of the maximum moment. W1 -L1 Where: L1= 4m L2= 3m P1= 4 kn P2= 4 kn W1= 6 kn/m W2= KN/m -L2
