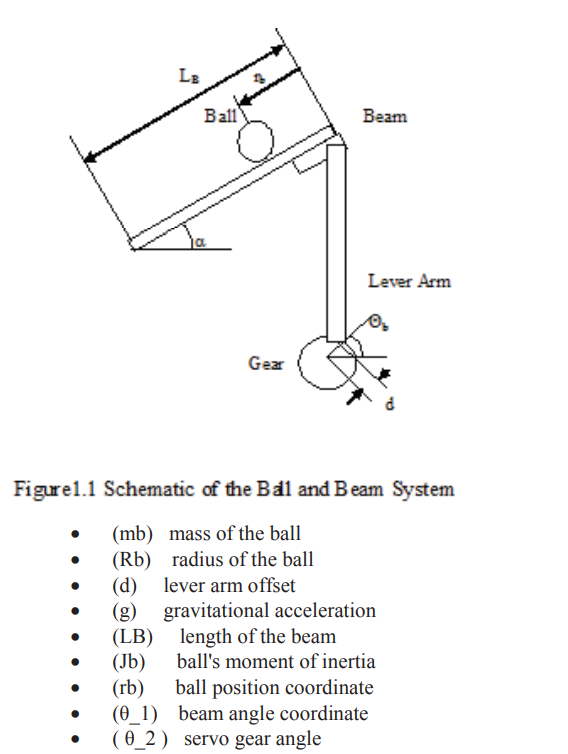

LE Ball Beam Lever Arm Gear Figure1.1 Schematic of the Ball and Beam System (mb) mass of the ball (Rb) radius of the bal

[answerhappygod]

Le Ball Beam Lever Arm Gear Figure1 1 Schematic Of The Ball And Beam System Mb Mass Of The Ball Rb Radius Of The Bal 1 (87.08 KiB) Viewed 54 times

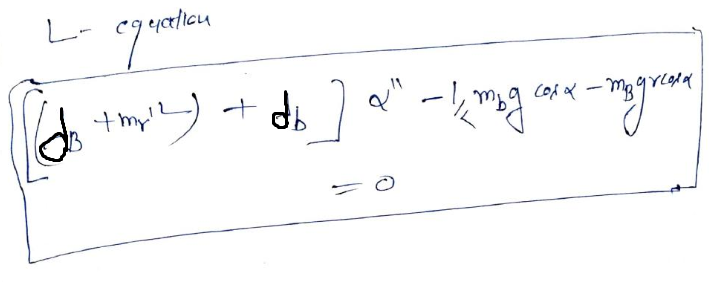

Lagrange eq.

Le Ball Beam Lever Arm Gear Figure1 1 Schematic Of The Ball And Beam System Mb Mass Of The Ball Rb Radius Of The Bal 2 (91.96 KiB) Viewed 54 times

system transfer function is

Le Ball Beam Lever Arm Gear Figure1 1 Schematic Of The Ball And Beam System Mb Mass Of The Ball Rb Radius Of The Bal 3 (4.32 KiB) Viewed 54 times

What is the SIMU-LINK FOR 2 DOF BALL POSITION AND ACCELERATION
WITH PID CONTROLLER???
PLEASE SEND THE SCREENSHOT FOR SIMULATION
LE Ball Beam Lever Arm Gear Figure1.1 Schematic of the Ball and Beam System (mb) mass of the ball (Rb) radius of the ball (d) lever arm offset gravitational acceleration length of the beam (LB) (Jb) ball's moment of inertia (rb) ball position coordinate (01) beam angle coordinate (0_2) servo gear angle

-7 сделанки (do + m²) + db] q" -1, mng coix-migrama ухала

0.027636 0.0398²
