Figure shows beam AB is placed in horizontal position on inclined simple support, under equilibrium condition. A downwar

Post by answerhappygod »

Figure Shows Beam Ab Is Placed In Horizontal Position On Inclined Simple Support Under Equilibrium Condition A Downwar 1
Figure Shows Beam Ab Is Placed In Horizontal Position On Inclined Simple Support Under Equilibrium Condition A Downwar 1 (257.17 KiB) Viewed 38 times
Figure Shows Beam Ab Is Placed In Horizontal Position On Inclined Simple Support Under Equilibrium Condition A Downwar 2
Figure Shows Beam Ab Is Placed In Horizontal Position On Inclined Simple Support Under Equilibrium Condition A Downwar 2 (257.17 KiB) Viewed 38 times
calculate the reaction in(N) of support at end B of beam (RB).

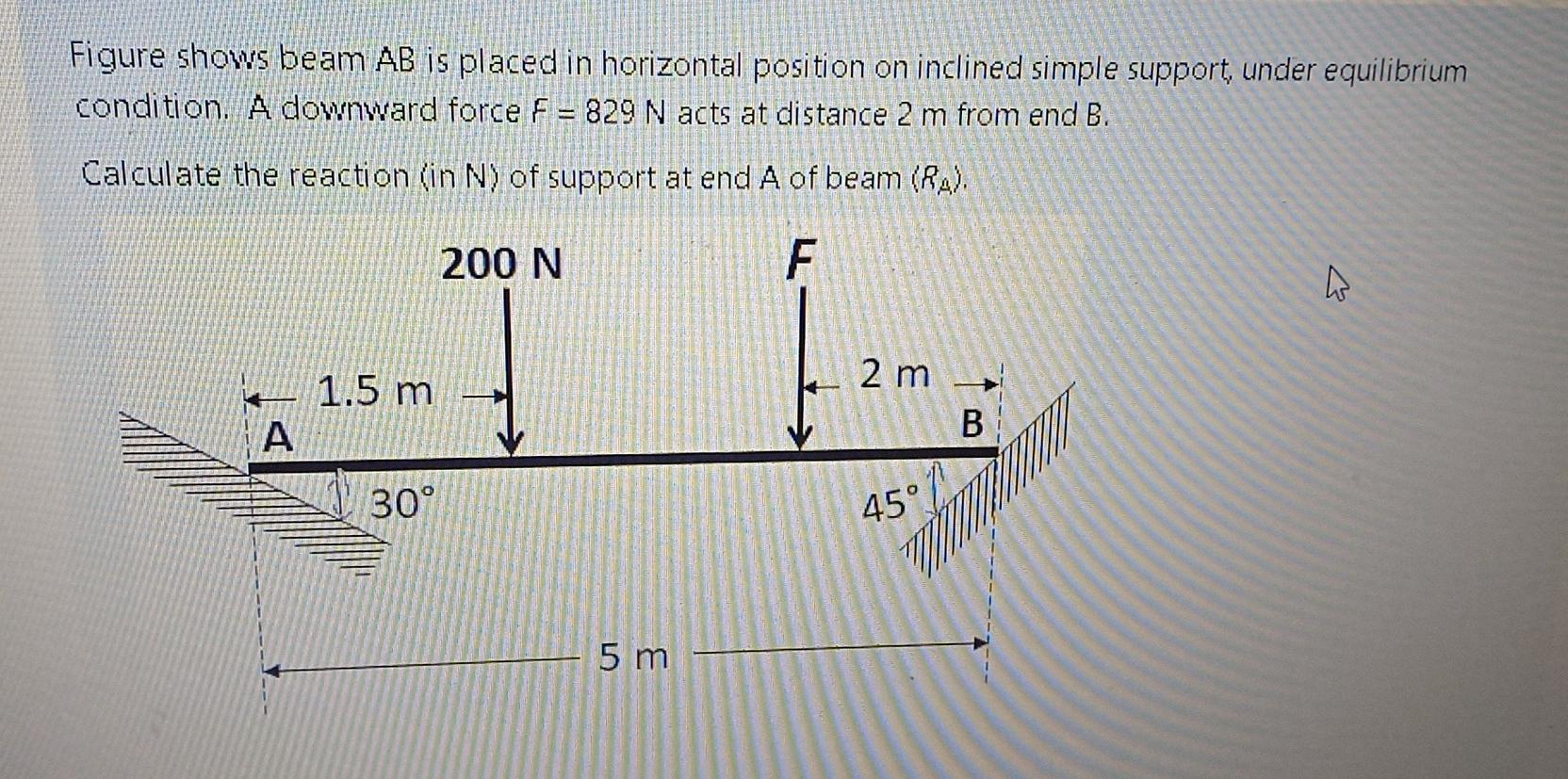

Figure shows beam AB is placed in horizontal position on inclined simple support, under equilibrium condition. A downward force F = 829 N acts at distance 2 m from end B. Calculate the reaction (in N) of support at end A of beam (RA). 200 N F 2 m 1.5 m 30° A 5 m 45° B 2

Figure shows beam AB is placed in horizontal position on inclined simple support, under equilibrium condition. A downward force F = 829 N acts at distance 2 m from end B. Calculate the reaction (in N) of support at end A of beam (RA). 200 N F 2 m 1.5 m 30° A 5 m 45° B 2
