If the cord is subjected to a horizontal force of P=530 N, and gear is supported by a fixed pin at O, determine the velo

Post by answerhappygod »

If The Cord Is Subjected To A Horizontal Force Of P 530 N And Gear Is Supported By A Fixed Pin At O Determine The Velo 1
If The Cord Is Subjected To A Horizontal Force Of P 530 N And Gear Is Supported By A Fixed Pin At O Determine The Velo 1 (199.78 KiB) Viewed 61 times

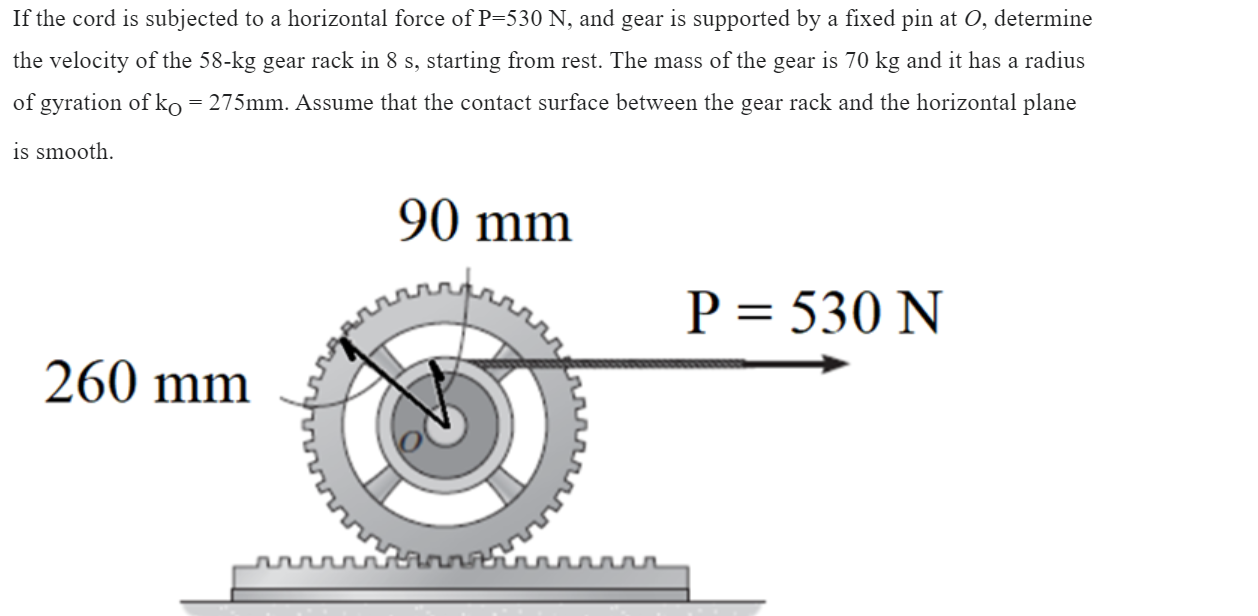

If the cord is subjected to a horizontal force of P=530 N, and gear is supported by a fixed pin at O, determine the velocity of the 58-kg gear rack in 8 s, starting from rest. The mass of the gear is 70 kg and it has a radius of gyration of ko = 275mm. Assume that the contact surface between the gear rack and the horizontal plane is smooth. 90 mm P = 530 N 260 mm
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
