The beam is supported by two rods AB and CD that have cross sectional areas of 20 mm² and 15 mm² respectively. Determine

Post by answerhappygod »

The Beam Is Supported By Two Rods Ab And Cd That Have Cross Sectional Areas Of 20 Mm And 15 Mm Respectively Determine 1
The Beam Is Supported By Two Rods Ab And Cd That Have Cross Sectional Areas Of 20 Mm And 15 Mm Respectively Determine 1 (55.11 KiB) Viewed 35 times

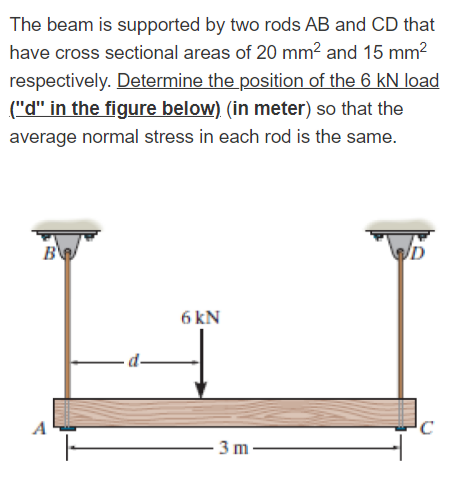

The beam is supported by two rods AB and CD that have cross sectional areas of 20 mm² and 15 mm² respectively. Determine the position of the 6 kN load ("d" in the figure below) (in meter) so that the average normal stress in each rod is the same. B WD 6 kN A 3 m. C
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
