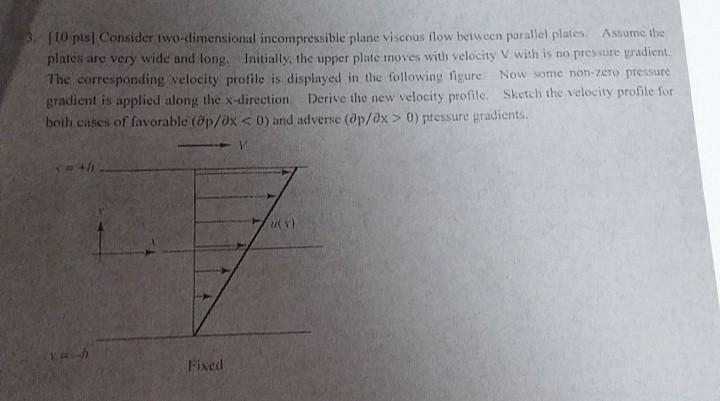

F10 pts] Consider two-dimensional incompressible plane viscous flow between parallel plates Assume the plates are very wide and long. Initially, the upper plate moves with velocity V with is no pressure gradient. The corresponding velocity profile is displayed in the following figure. Now some non-zero pressure gradient is applied along the x-direction. Derive the new velocity profile. Sketch the velocity profile for both cases of favorable (op/öx < 0) and adverse (op/dx > 0) pressure gradients. u(X) Fixed
