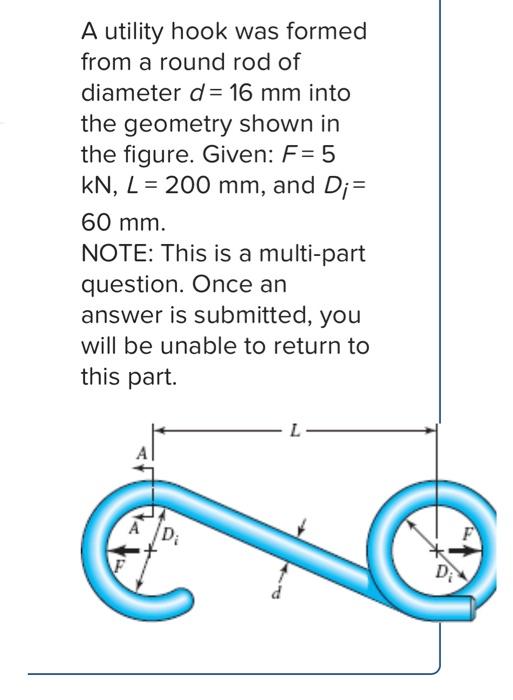

A utility hook was formed from a round rod of diameter d = 16 mm into the geometry shown in the figure. Given: F = 5 kN, L = 200 mm, and D;= 60 mm. NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. L Di to

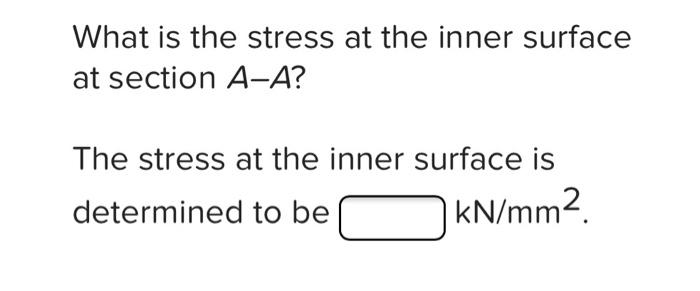

What is the stress at the inner surface at section A-A? The stress at the inner surface is determined to be kN/mm².

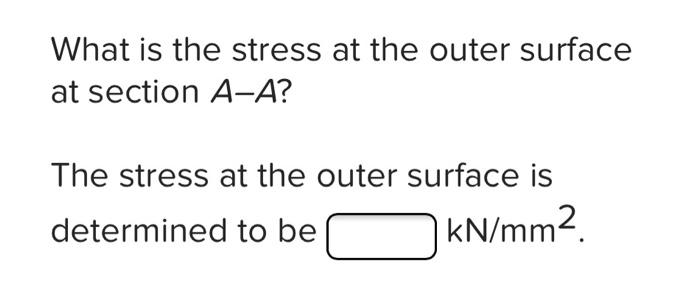

What is the stress at the outer surface at section A-A? The stress at the outer surface is determined to be kN/mm²
