The simply supported beam consists of a W21 x 44 structural steel wide-flange shape [E = 29,000 ksi; /= 843 in.4]. Assum
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
The simply supported beam consists of a W21 x 44 structural steel wide-flange shape [E = 29,000 ksi; /= 843 in.4]. Assum

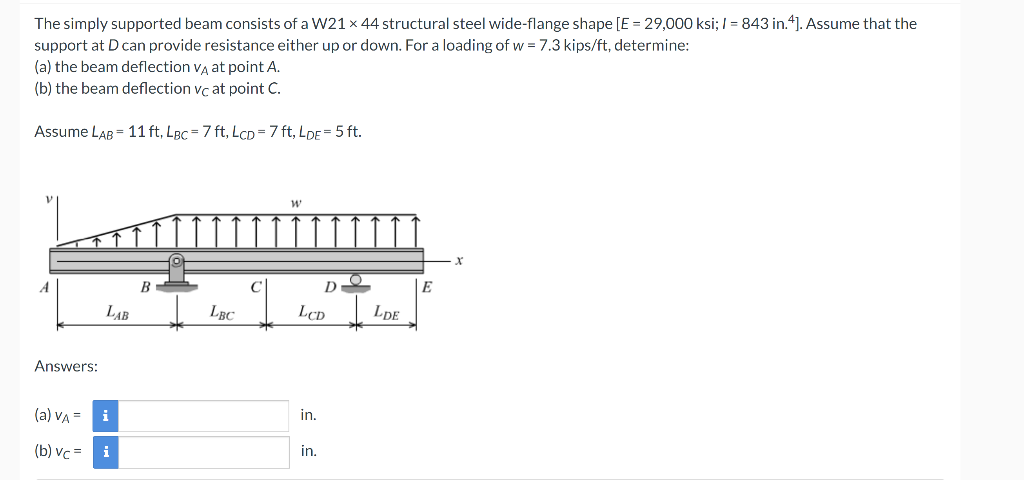

The simply supported beam consists of a W21 x 44 structural steel wide-flange shape [E = 29,000 ksi; /= 843 in.4]. Assume that the support at D can provide resistance either up or down. For a loading of w = 7.3 kips/ft, determine: (a) the beam deflection VA at point A. (b) the beam deflection vc at point C. Assume LAB = 11 ft, LBC = 7 ft, LCD = 7 ft,LDE = 5 ft. W x LAB LBC Answers: (a) VA = (b) vc= i i D LCD in. in. LDE E
