Describe the motivation and the procedure of loop shaping for the frequency-domain design of feedback controllers. Clear

Post by answerhappygod »

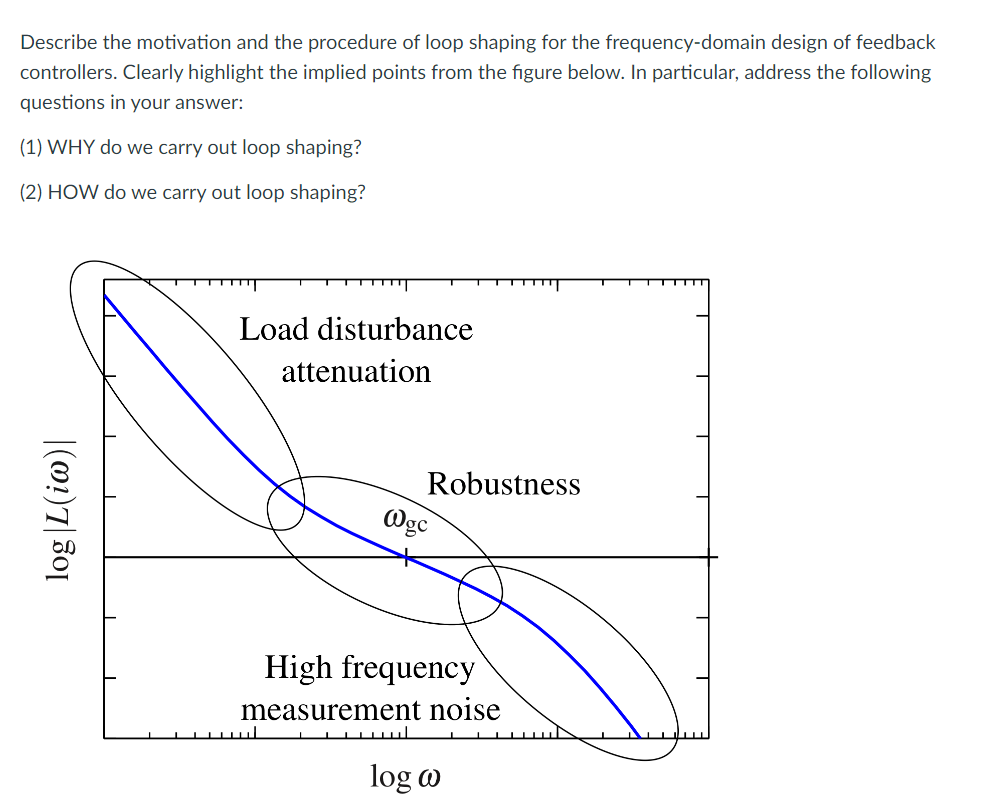

Describe The Motivation And The Procedure Of Loop Shaping For The Frequency Domain Design Of Feedback Controllers Clear 1
Describe The Motivation And The Procedure Of Loop Shaping For The Frequency Domain Design Of Feedback Controllers Clear 1 (79.87 KiB) Viewed 28 times
Describe the motivation and the procedure of loop shaping for the frequency-domain design of feedback controllers. Clearly highlight the implied points from the figure below. In particular, address the following questions in your answer: (1) WHY do we carry out loop shaping? (2) HOW do we carry out loop shaping? T log |L(iw)| ▬▬▬▬▬▬▬▬▬▬▬▬▬ Load disturbance attenuation Robustness Wgc High frequency measurement noise …………. log @
