The joint is subjected to the force system shown in the figure below (Figure 1) where P1P1 = 200 lblb and P2P2 = 540 lbl

[answerhappygod]

The joint is subjected to the force system shown in the figure
below (Figure
1) where P1P1 = 200 lblb and P2P2 = 540 lblb .
The member has a rectangular cross-sectional area of
width 0.5 inin. and
thickness 1 inin .

The Joint Is Subjected To The Force System Shown In The Figure Below Figure 1 Where P1p1 200 Lblb And P2p2 540 Lbl 1 (73.86 KiB) Viewed 38 times

The Joint Is Subjected To The Force System Shown In The Figure Below Figure 1 Where P1p1 200 Lblb And P2p2 540 Lbl 2 (108.39 KiB) Viewed 38 times

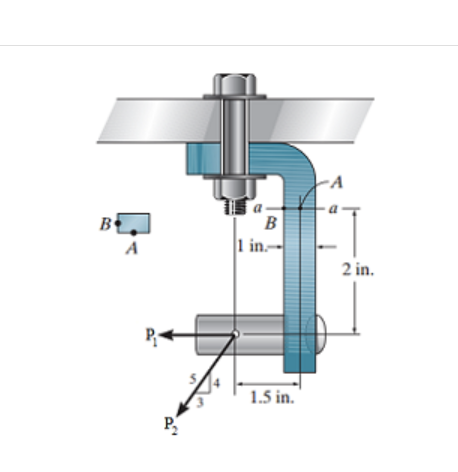

B A P₂ B 1 in 1.5 in. -A 2 in.

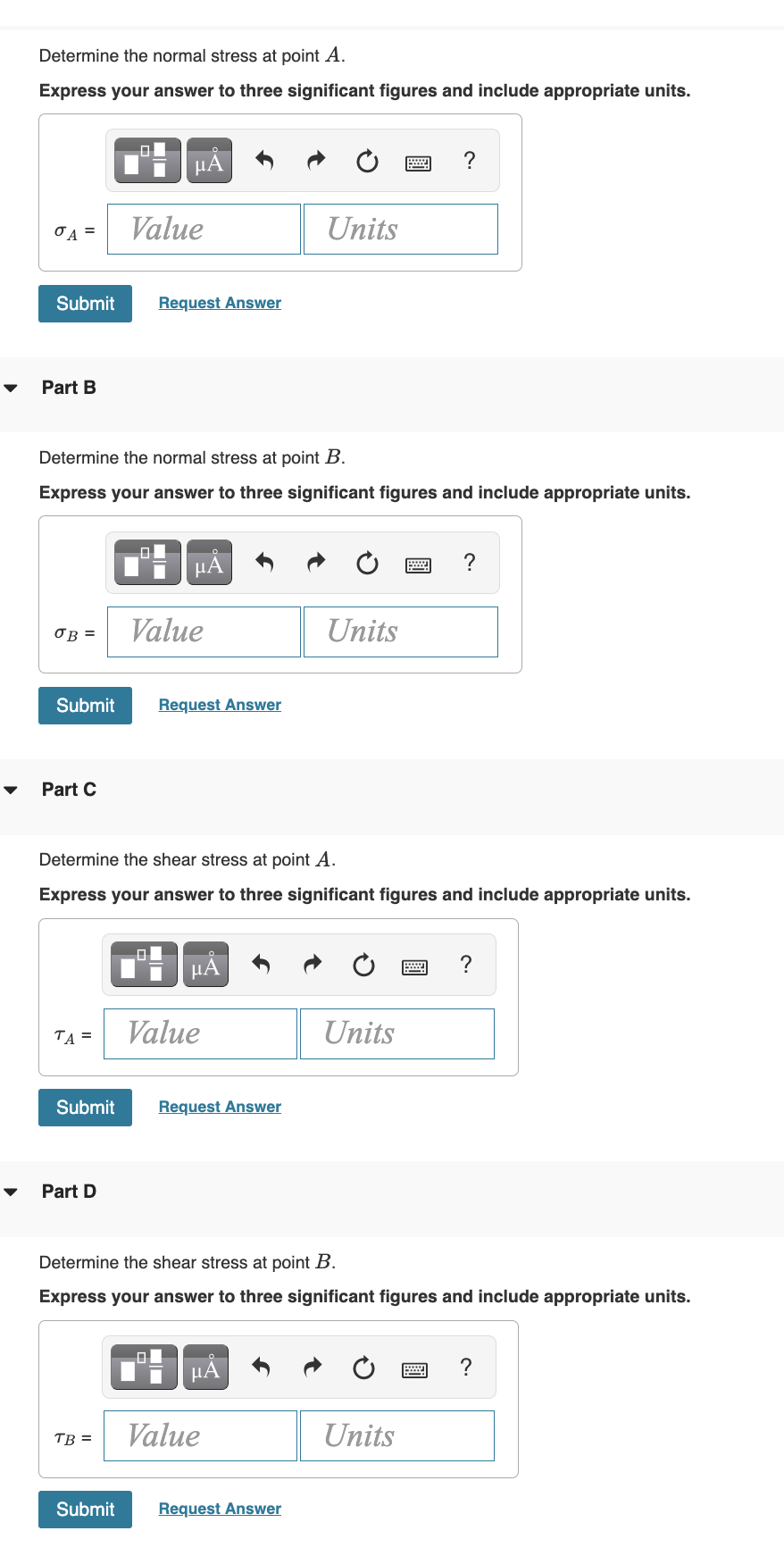

Determine the normal stress at point A. Express your answer to three significant figures and include appropriate units. ? σA = Value Units Submit Request Answer Part B Determine the normal stress at point B. Express your answer to three significant figures and include appropriate units. μA ? σB = Value Units Submit Request Answer Part C Determine the shear stress at point A. Express your answer to three significant figures and include appropriate units. μA ? TA = Value Units Submit Request Answer Part D Determine the shear stress at point B. Express your answer to three significant figures and include appropriate units. μA ∞ ? TB = Value Units Submit Request Answer
