The T-beam is constructed as shown in the figure below. Each nail can support a shear force of 950 lblb . The allowable

Post by answerhappygod »

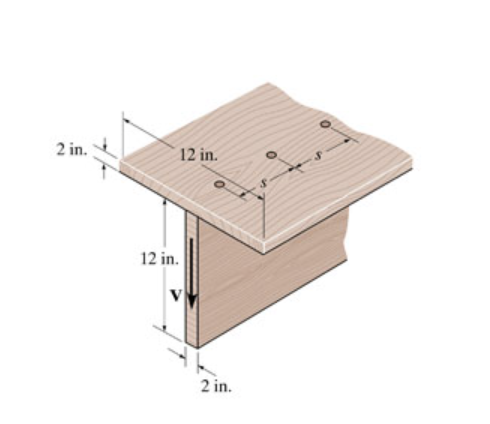

The T-beam is constructed as shown in the figure below. Each
nail can support a shear force
of 950 lblb . The allowable shear stress for
the wood
is τallowτallowtau_allow = 430 psipsi
The T Beam Is Constructed As Shown In The Figure Below Each Nail Can Support A Shear Force Of 950 Lblb The Allowable 1
The T Beam Is Constructed As Shown In The Figure Below Each Nail Can Support A Shear Force Of 950 Lblb The Allowable 1 (59.4 KiB) Viewed 48 times
The T Beam Is Constructed As Shown In The Figure Below Each Nail Can Support A Shear Force Of 950 Lblb The Allowable 2
The T Beam Is Constructed As Shown In The Figure Below Each Nail Can Support A Shear Force Of 950 Lblb The Allowable 2 (104.55 KiB) Viewed 48 times

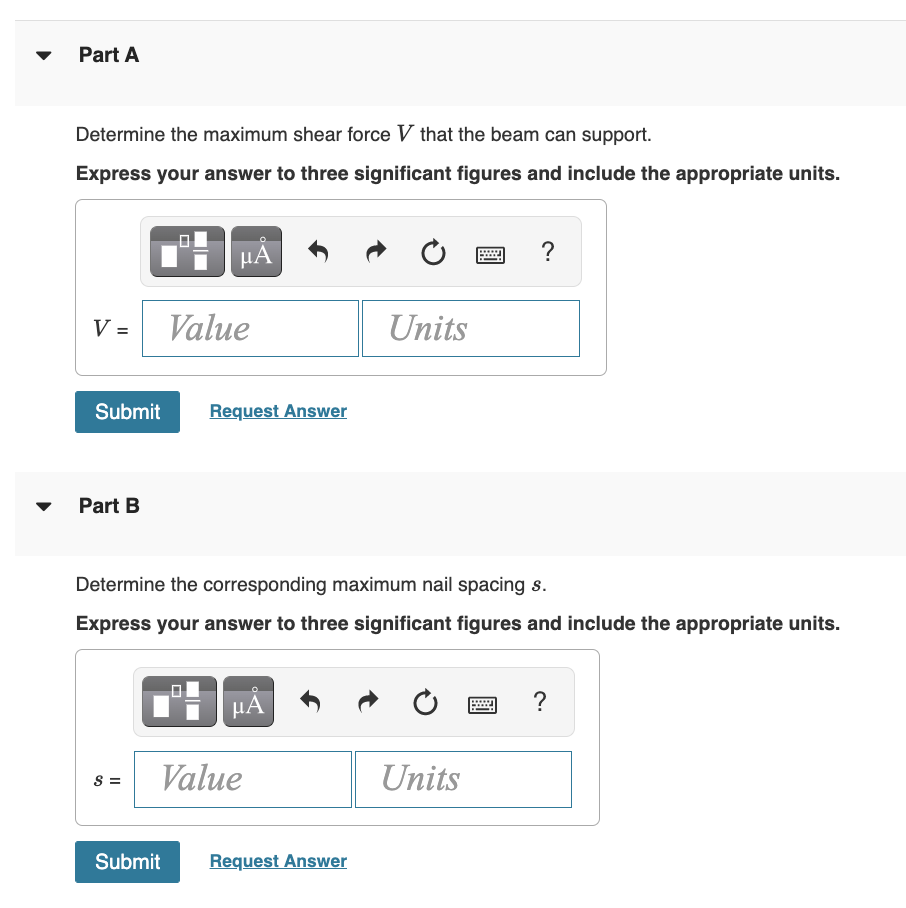

Part A Determine the maximum shear force V that the beam can support. Express your answer to three significant figures and include the appropriate units. ■ μA ? V = Value Units Request Answer Part B Determine the corresponding maximum nail spacing s. Express your answer to three significant figures and include the appropriate units. HÅ ? S = Value Units Submit Request Answer Submit

2 in. 12 in. 12 in. 2 in.
