A simply supported 4m long steel (E=200GPa) beam has a moment of M=120kNm applied at its centre. The beam is a 200x160x1

Post by answerhappygod »

A Simply Supported 4m Long Steel E 200gpa Beam Has A Moment Of M 120knm Applied At Its Centre The Beam Is A 200x160x1 1
A Simply Supported 4m Long Steel E 200gpa Beam Has A Moment Of M 120knm Applied At Its Centre The Beam Is A 200x160x1 1 (207.83 KiB) Viewed 45 times

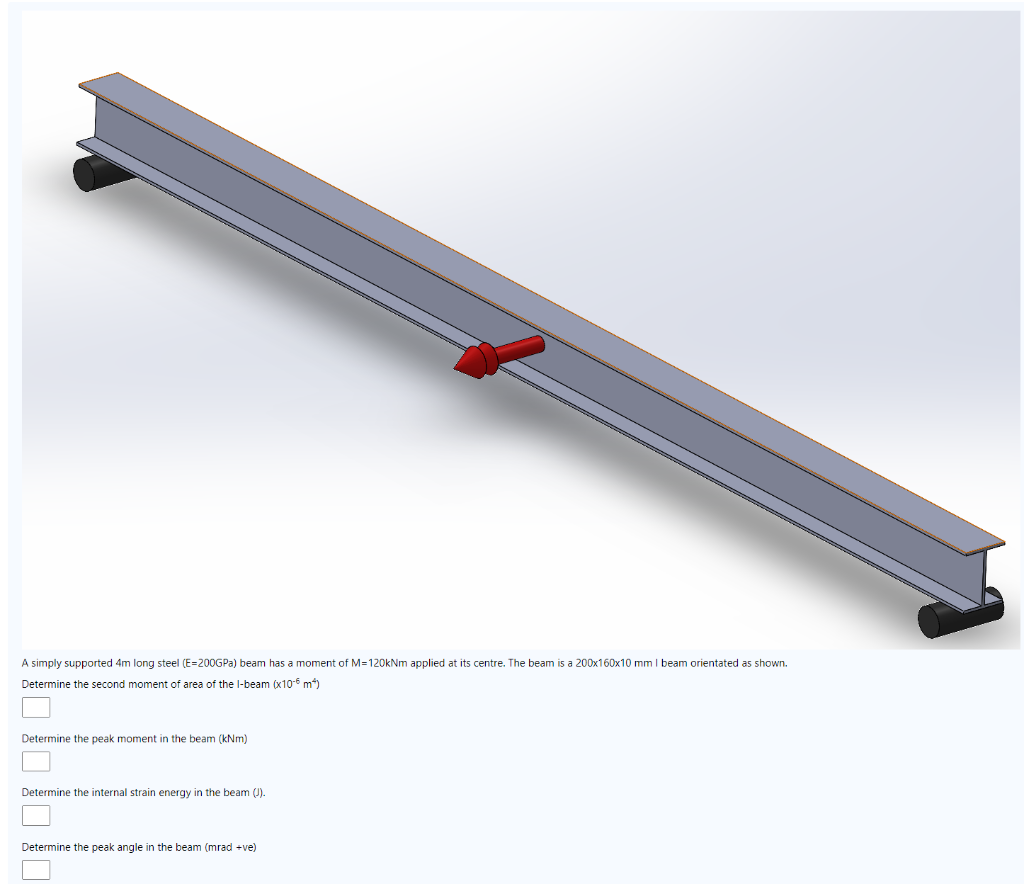

A simply supported 4m long steel (E=200GPa) beam has a moment of M=120kNm applied at its centre. The beam is a 200x160x10 mm I beam orientated as shown. Determine the second moment of area of the I-beam (x10-6 m²) Determine the peak moment in the beam (kNm) Determine the internal strain energy in the beam (J). Determine the peak angle in the beam (mrad +ve)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
