reduce the following block diagram to a single TF G6 U(s) + + G1 G2 G3 G5 G4 Y(s)

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

reduce the following block diagram to a single TF G6 U(s) + + G1 G2 G3 G5 G4 Y(s)

Post by answerhappygod »

Reduce The Following Block Diagram To A Single Tf G6 U S G1 G2 G3 G5 G4 Y S 1

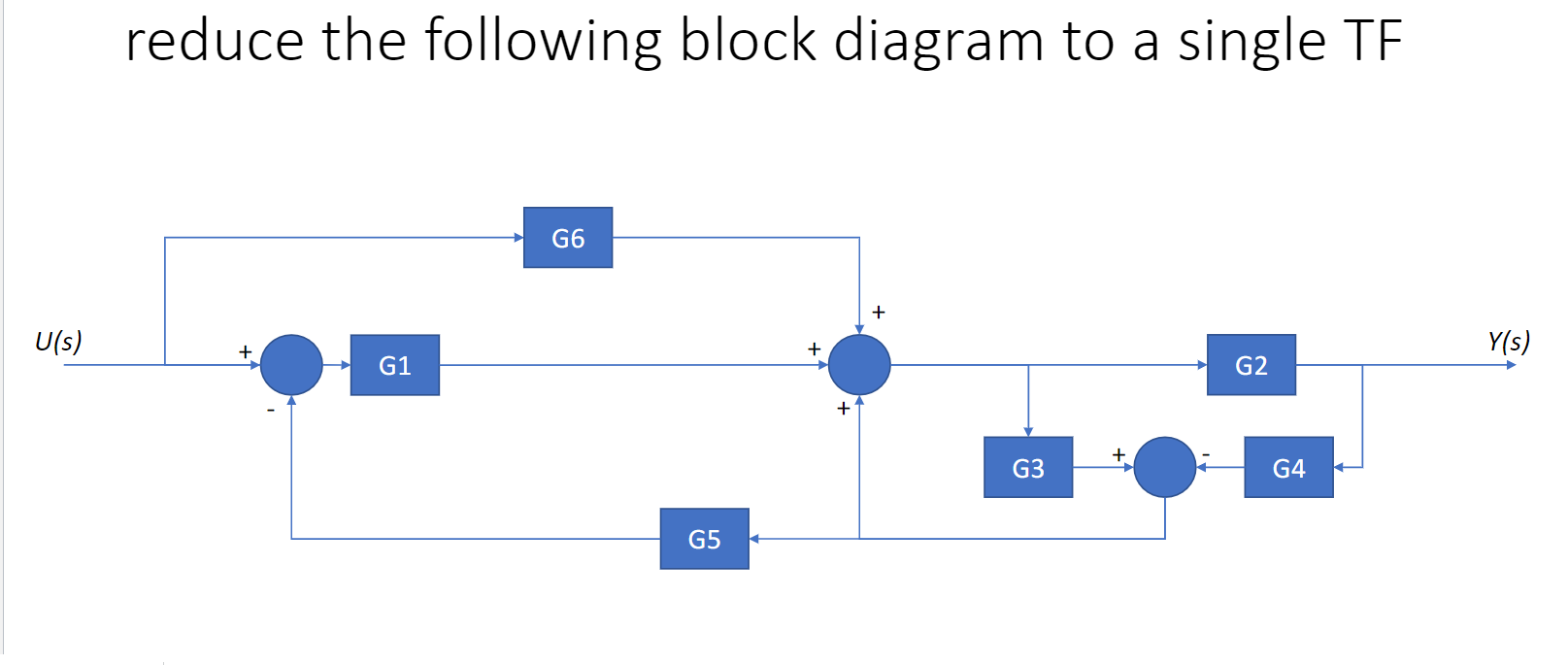

Reduce The Following Block Diagram To A Single Tf G6 U S G1 G2 G3 G5 G4 Y S 1 (41.58 KiB) Viewed 32 times
reduce the following block diagram to a single TF G6 U(s) + + G1 G2 G3 G5 G4 Y(s)
