Find The Time Domain Response Y T For Y S In The Following Block Diagram To An Exponential Input For Two Different C 1 (62.78 KiB) Viewed 48 times

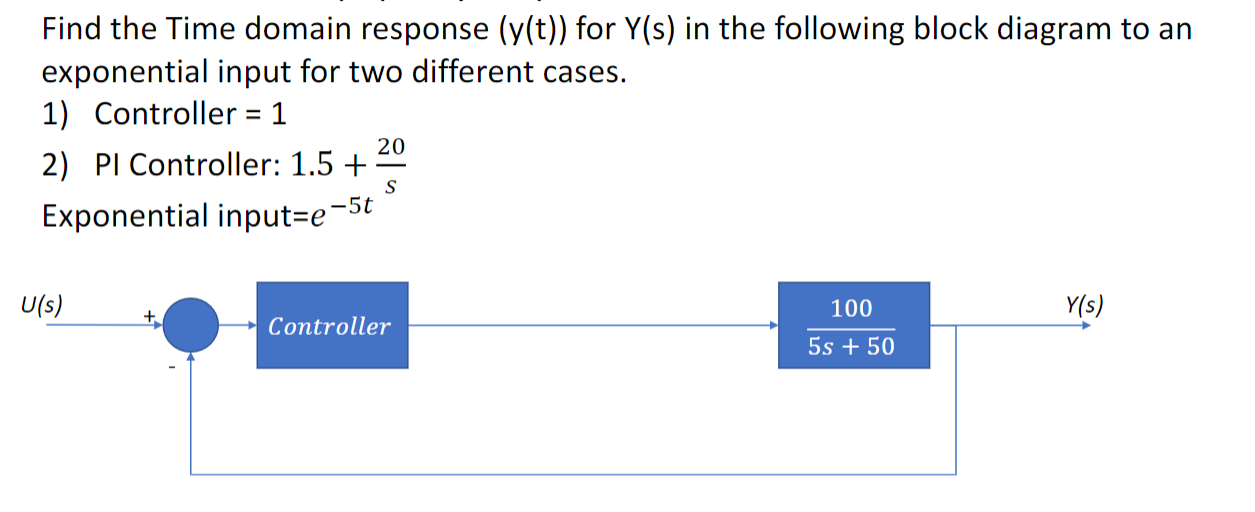

Find the Time domain response (y(t)) for Y(s) in the following block diagram to an exponential input for two different cases. 1) Controller = 1 20 2) PI Controller: 1.5 + S Exponential input-e-5t Y(s) U(s) + Controller 100 5s + 50
Find the time domain steady state value for cases 1 and 2 as well as the uncontrolled open loop response you found in problem 3. 1) Controller = 1 20 2) PI Controller: 1.5 + S -5t Exponential input-e` U(s) Y(s) Controller 100 5s + 50
