3 En La Figura Se Muestra El Esquema Del Prototipo Experimental Utilizado Para Hacer Pruebas De Perdida De Carga En Un 1 (13.98 KiB) Viewed 40 times

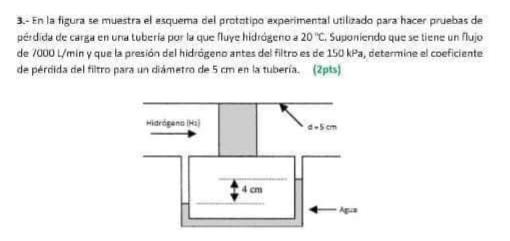

3-The figure shows the scheme of the experimental prototype used to carry out head loss tests in a pipe through which hydrogen flows at 20 °C, Assuming that there is a flow of 7000 L/min and that the pressure of the hydrogen before of the filter is 150 kPa, determine the loss coefficient of the filter for a diameter of 5 cm in the pipe.
3.- En la figura se muestra el esquema del prototipo experimental utilizado para hacer pruebas de pérdida de carga en una tubería por la que fluye hidrógeno a 20 "C. Suponiendo que se tiene un flujo de 7000 L/min y que la presión del hidrógeno antes del filtro es de 150 kPa, determine el coeficiente de pérdida del filtro para un diámetro de 5 cm en la tubería. (2pts) Hidrogeno (H) 4 cm -Agia
