The 6061 aluminum fabrication part shown is planned to be made by casting in a disposable mold. For this it is requested
1. The design of the model (pattern) to make the cavity of the casting.
2. The mold must have a pouring system, feeding system, risers, etc.
3. Location of cores in the foundry.
4. Calculation of manufacturing cost per piece, and production time.
5. Submit a 3D model of the pattern design, and the prepared mold.
- Casting Manufacturing The 6061 Aluminum Fabrication Part Shown Is Planned To Be Made By Casting In A Disposable Mold F 1 (92.99 KiB) Viewed 33 times
- Casting Manufacturing The 6061 Aluminum Fabrication Part Shown Is Planned To Be Made By Casting In A Disposable Mold F 2 (92.99 KiB) Viewed 33 times

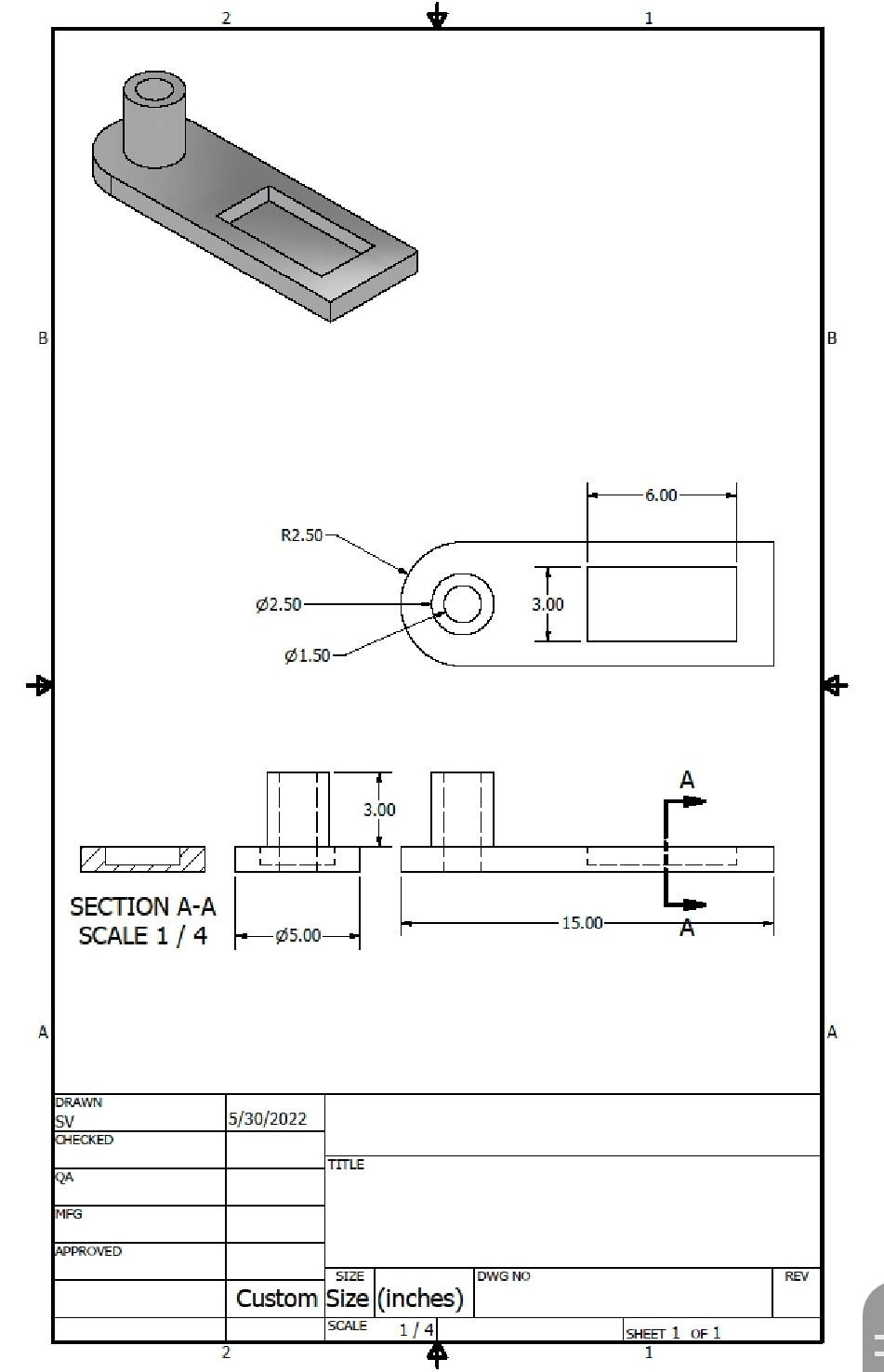

B A SECTION A-A SCALE 1/4 DRAWN SV CHECKED QA MFG APPROVED R2.50 Ø2.50- 91.50 -Ø5.00- 3.00 O 5/30/2022 TITLE SIZE Custom Size (inches) SCALE 1/4 2 DWG NO 3.00 15.00- -6.00 A SHEET 1 OF 1 1 REV IB
