6. These log magnitude and phase plots were developed using experimental data 20 log Magnitude 5 0 -5 -10 -15 -20 -25 -3

[answerhappygod]

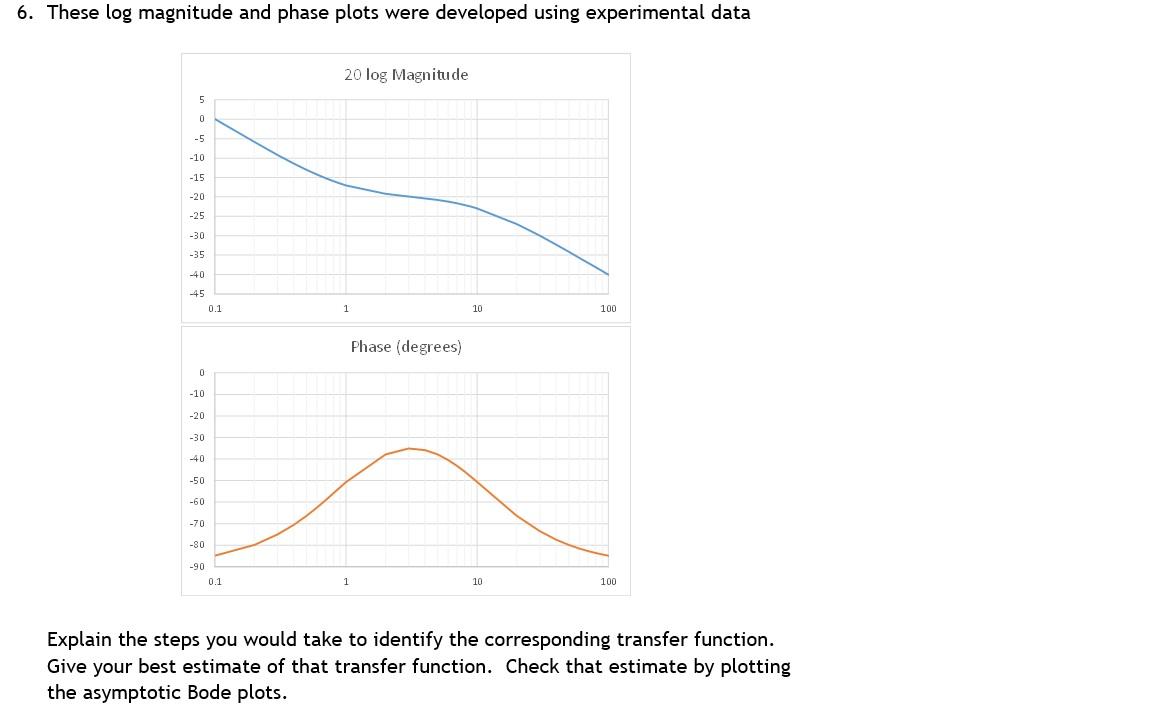

6 These Log Magnitude And Phase Plots Were Developed Using Experimental Data 20 Log Magnitude 5 0 5 10 15 20 25 3 1 (58.11 KiB) Viewed 32 times

6. These log magnitude and phase plots were developed using experimental data 20 log Magnitude 5 0 -5 -10 -15 -20 -25 -30 -35 -40 -45 1 100 Phase (degrees) 0.1 10 100 Explain the steps you would take to identify the corresponding transfer function. Give your best estimate of that transfer function. Check that estimate by plotting the asymptotic Bode plots. 0 0.1 -10 -20 -30 -40 -50 -60 -70 -80 -90 10
