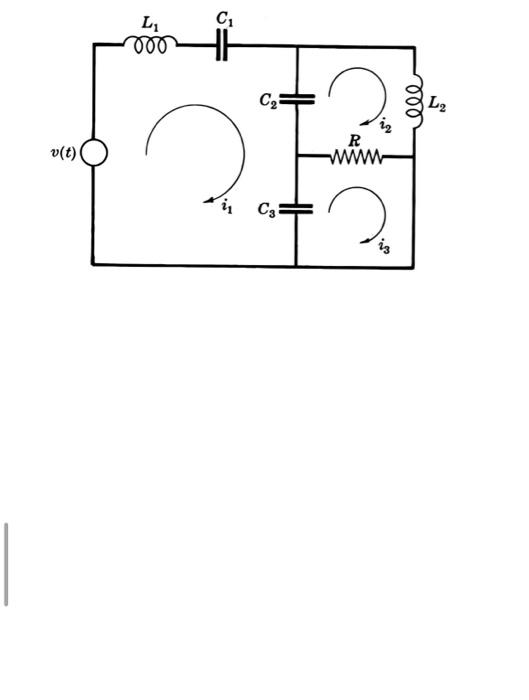

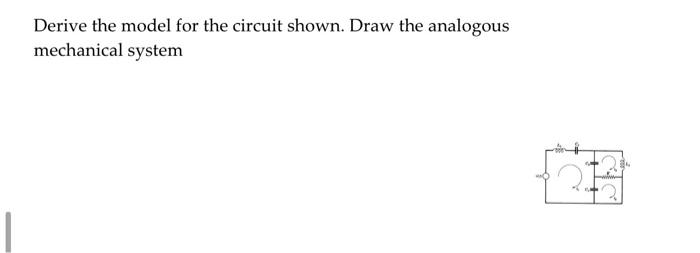

Derive the model for the circuit shown. Draw the analogous mechanical system
v(t) L₁ ooo C₁ C₂² C3 R wwwww iz 000 L₂
