The cantilever beam consists of a rectangular structural steel tube shape [E = 25000 ksi; / = 512 in.4]. For the loading

Post by answerhappygod »

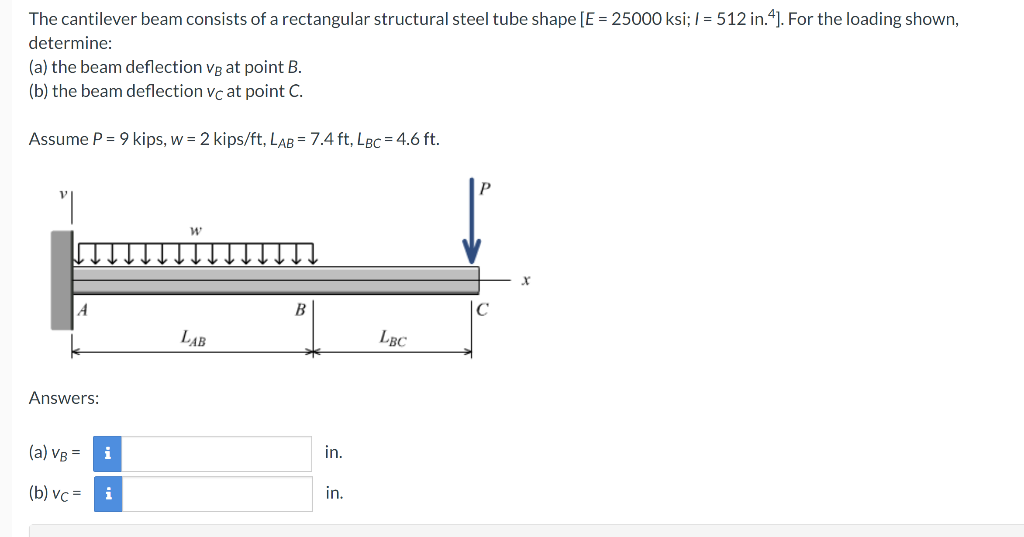

The Cantilever Beam Consists Of A Rectangular Structural Steel Tube Shape E 25000 Ksi 512 In 4 For The Loading 1
The Cantilever Beam Consists Of A Rectangular Structural Steel Tube Shape E 25000 Ksi 512 In 4 For The Loading 1 (49.9 KiB) Viewed 26 times
The cantilever beam consists of a rectangular structural steel tube shape [E = 25000 ksi; / = 512 in.4]. For the loading shown, determine: (a) the beam deflection vg at point B. (b) the beam deflection vc at point C. Assume P = 9 kips, w = 2 kips/ft, LAB = 7.4 ft, LBC = 4.6 ft. W B A LAB LBC Answers: (a) VB = (b) vc= i i in. in.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
