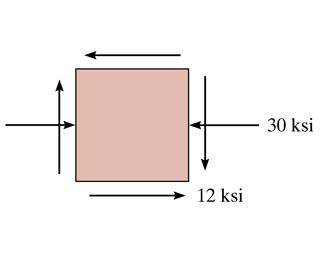

The state of stress at a point is shown on the element.
Determine the principal stress and the maximum in-plane shear
stress and average normal stress at the point using Mohr's circle.
Specify the orientation of the element in each case.
1. Determine the principal stresses. σ1, σ2
2. Determine the orientation of principal planes of
stress.
3. Determine the maximum in-plane shear stress.
4. Determine the average normal stress.
5. Determine the orientation of the planes of maximum
in-plane shear stress.
The State Of Stress At A Point Is Shown On The Element Determine The Principal Stress And The Maximum In Plane Shear St 1 (5.46 KiB) Viewed 35 times
12 ksi 30 ksi
