The state of stress at a point in a member is shown on the element. Suppose that ₂ =-50 MPa, y = -30 MPa, 7zy=-28 MPa Fi

[answerhappygod]

The State Of Stress At A Point In A Member Is Shown On The Element Suppose That 50 Mpa Y 30 Mpa 7zy 28 Mpa Fi 1 (54.67 KiB) Viewed 37 times

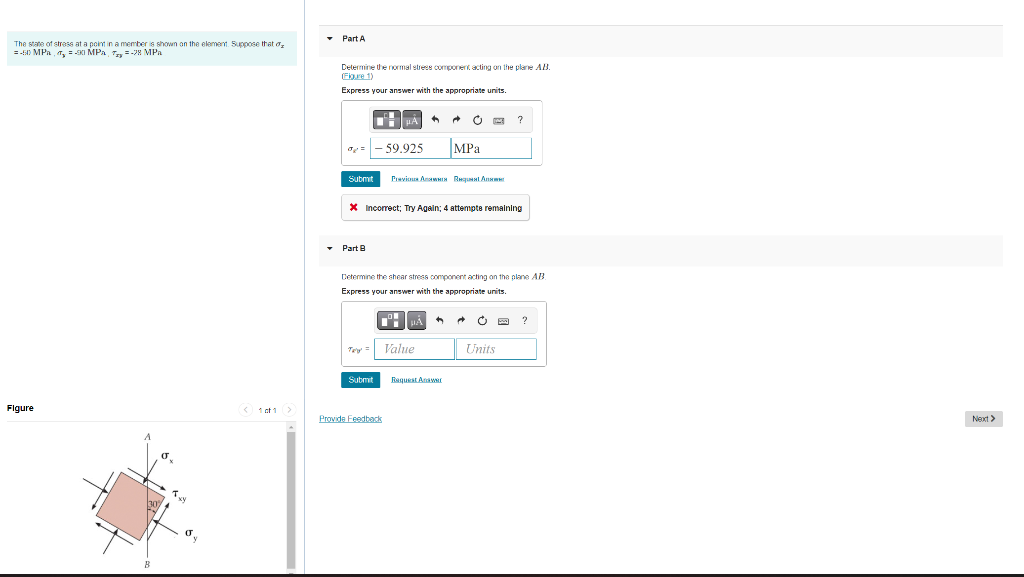

The state of stress at a point in a member is shown on the element. Suppose that ₂ =-50 MPa, y = -30 MPa, 7zy=-28 MPa Figure 1 ct 1 ▾ Part A Determine the normal stress component acting on the plane AB. (Figure 1) Express your answer with the appropriate units. + o ? - 59.925 MPa Submit Previous AwIH Rest Answ * Incorrect; Try Again; 4 attempts remaining ▾ Part B Determine the shear stress component acting on the plane AB. Express your answer with the appropriate units. P Value Tey Units Submit Provide Feedback Request Answer Next >
