Learning Goal: To calculate the normal and shear stresses at a point on the cross section of a column. The state of stre

[answerhappygod]

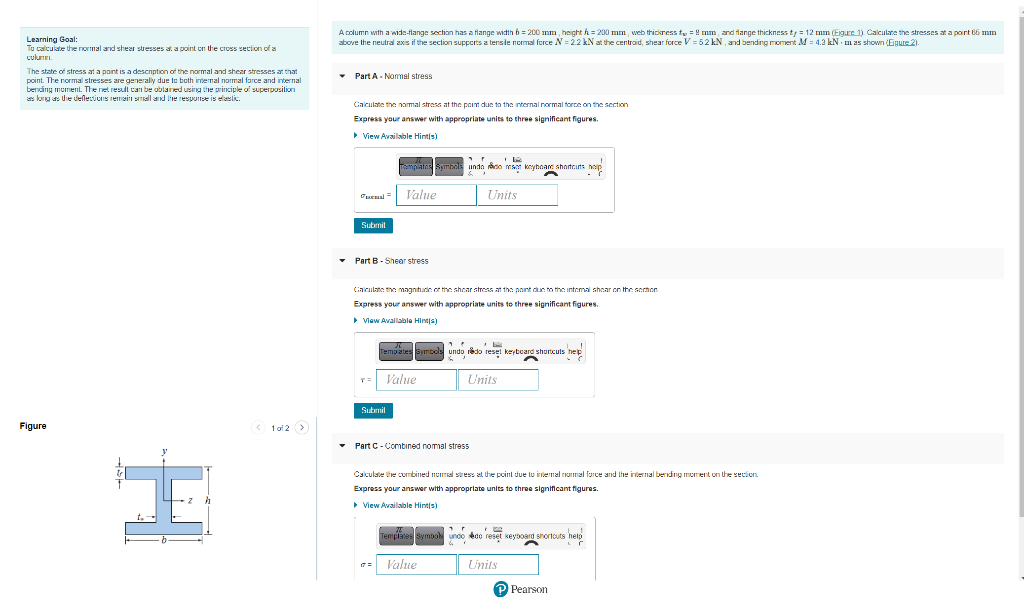

Learning Goal To Calculate The Normal And Shear Stresses At A Point On The Cross Section Of A Column The State Of Stre 1 (88.76 KiB) Viewed 36 times

Learning Goal: To calculate the normal and shear stresses at a point on the cross section of a column. The state of stress at a point is a description of the normal and shear stresses at that point. The normal stresses are generally due to both internal normal force and internal bending moment. The net result can be obtained using the principle of superposition as long as the deflections remain small and the response is elastic. Figure I < 10/2 > A column with a wide-flange section has a flange width 6 = 200 mm, height = 200 mm, web thickness f = 8 mm, and flange thickness ty= 12 mm (Figure 1). Calculate the stresses at a point 66 mm above the neutral axis if the section supports a tensile normal force N = 2.2 kN at the centroid, shear force V=52 kN, and bending moment M = 4.3 kNm as shown (Figure 2). Part A - Normal stress Calculate the normal stress at the point due to the internal normal force on the section Express your answer with appropriate units to three significant figures. ▸ View Available Hint(s) r Templates Symbols unda do mest keyboard shortcuts A shop! 61 Units Submit ▾ Part B-Shear stress Calculate the magnitude of the shear stress at the point due to the internal shear on the section Express your answer with appropriate units to three significant figures. View Available Hint(s) Templates Symbols undo redo reset keyboard shortcuts help T= Value Units Submil ▾ Part C-Combined normal stress Calculate the combined normal stress at the point due to internal normal force and the internal bending moment on the section. Express your answer with appropriate units to three significant figures. ▸ View Available Hint(s) Templates Symbols undo do reset keyboard shortcuts help Value Units P Pearson al Value
