For each of the following transfer functions: I. Find the poles and zeros. II. Sketch the poles and zeros on a pole-zero

[answerhappygod]

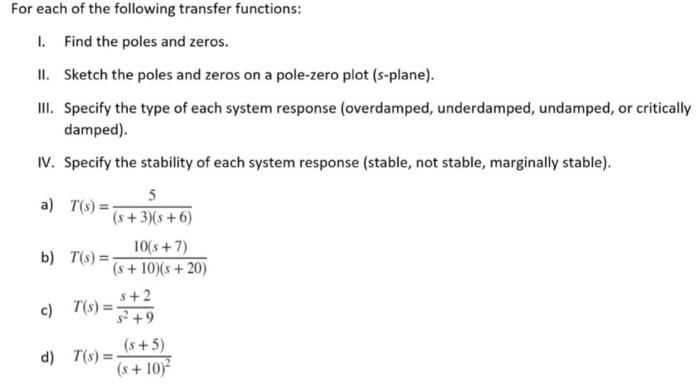

For Each Of The Following Transfer Functions I Find The Poles And Zeros Ii Sketch The Poles And Zeros On A Pole Zero 1 (21.99 KiB) Viewed 37 times

For each of the following transfer functions: I. Find the poles and zeros. II. Sketch the poles and zeros on a pole-zero plot (s-plane). III. Specify the type of each system response (overdamped, underdamped, undamped, or critically damped). IV. Specify the stability of each system response (stable, not stable, marginally stable). 5 a) T(s) = (s+3)(s+6) b) T(s)=- 10(s+7) (s + 10)(s+20) s+2 c) T(s) = s² +9 d) T(s) = (s+5) (s+10)²
