The simply supported beam consists of a W460 x 82 structural steel wide-flange shape [E-200 GPa; 1-370 x 106 mm4]. For t

Post by answerhappygod »

The Simply Supported Beam Consists Of A W460 X 82 Structural Steel Wide Flange Shape E 200 Gpa 1 370 X 106 Mm4 For T 1
The Simply Supported Beam Consists Of A W460 X 82 Structural Steel Wide Flange Shape E 200 Gpa 1 370 X 106 Mm4 For T 1 (15.24 KiB) Viewed 31 times

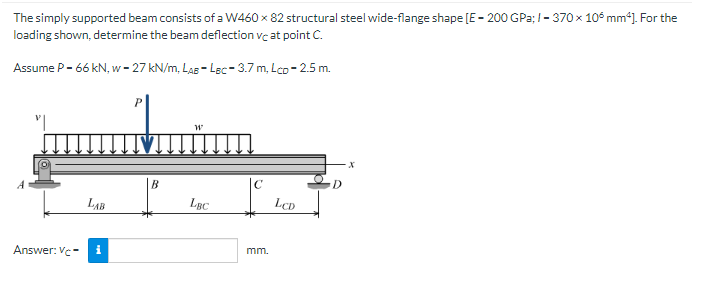

The simply supported beam consists of a W460 x 82 structural steel wide-flange shape [E-200 GPa; 1-370 x 106 mm4]. For the loading shown, determine the beam deflection vc at point C. Assume P-66 kN, w-27 kN/m, LAB-Lac-3.7 m, Lcp-2.5 m. vomin W X B LBC Answer: Vc- LAB i mm. LCD
