- Create A Morphological Chart For A Submersible Water Pump Of A Pump Lowering System Please Show All Details Thanks 1 (54.74 KiB) Viewed 25 times

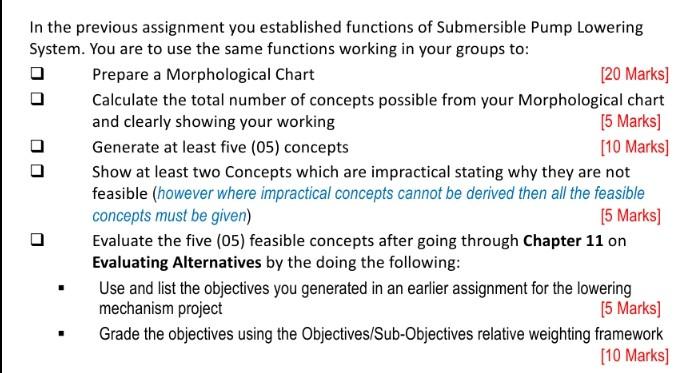

In the previous assignment you established functions of Submersible Pump Lowering System. You are to use the same functions working in your groups to: Prepare a Morphological Chart [20 Marks] Calculate the total number of concepts possible from your Morphological chart and clearly showing your working [5 Marks] Generate at least five (05) concepts [10 Marks] Show at least two Concepts which are impractical stating why they are not feasible (however where impractical concepts cannot be derived then all the feasible concepts must be given) [5 Marks] Evaluate the five (05) feasible concepts after going through Chapter 11 on Evaluating Alternatives by the doing the following: ■ Use and list the objectives you generated in an earlier assignment for the lowering mechanism project [5 Marks] Grade the objectives using the Objectives/Sub-Objectives relative weighting framework [10 Marks] U
