The diameter of each segment is indicated in the figure below. Take P₁=1 kip, P₂ = 6 kip, P3 = 9 kip, and P4 = 4 kip. (F

[answerhappygod]

The Diameter Of Each Segment Is Indicated In The Figure Below Take P 1 Kip P 6 Kip P3 9 Kip And P4 4 Kip F 1 (32.95 KiB) Viewed 51 times

The Diameter Of Each Segment Is Indicated In The Figure Below Take P 1 Kip P 6 Kip P3 9 Kip And P4 4 Kip F 2 (31.23 KiB) Viewed 51 times

The Diameter Of Each Segment Is Indicated In The Figure Below Take P 1 Kip P 6 Kip P3 9 Kip And P4 4 Kip F 3 (36.56 KiB) Viewed 51 times

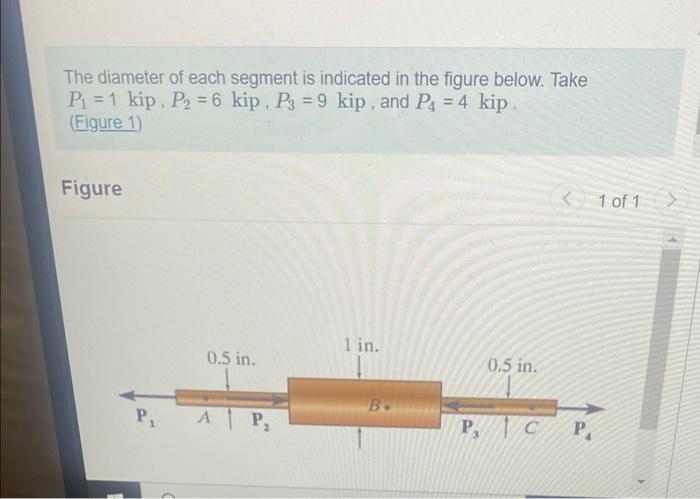

The diameter of each segment is indicated in the figure below. Take P₁=1 kip, P₂ = 6 kip, P3 = 9 kip, and P4 = 4 kip. (Figure 1) Figure 1 in. 0.5 in. P₁ AP₂ B. < 1 of 1 0.5 in. P, C P 4

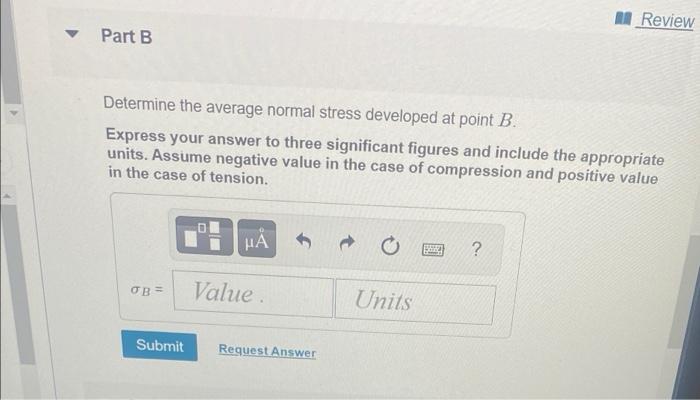

Review Part B Determine the average normal stress developed at point B. Express your answer to three significant figures and include the appropriate units. Assume negative value in the case of compression and positive value in the case of tension. HÅ - 0 www ? OB= Value. Submit Request Answer Units

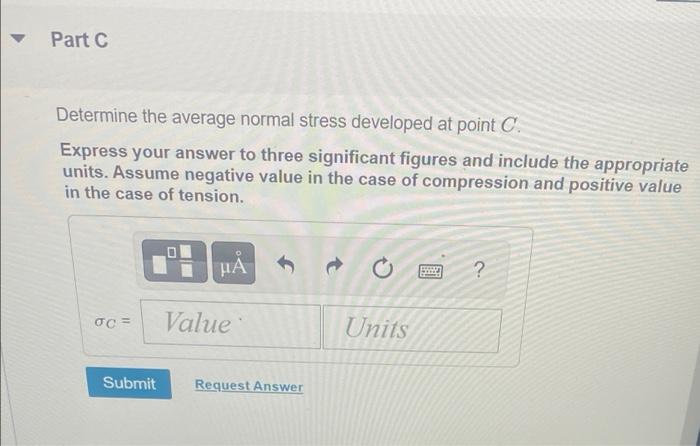

Part C Determine the average normal stress developed at point C. Express your answer to three significant figures and include the appropriate units. Assume negative value in the case of compression and positive value in the case of tension. ΠΑ C p ? JC = Value Units Submit Request Answer
