Problem 8.6: For the beam shown in Figure P8.6, calculate the maximum deflection. The system parameters are given by di-

Post by answerhappygod »

Problem 8 6 For The Beam Shown In Figure P8 6 Calculate The Maximum Deflection The System Parameters Are Given By Di 1
Problem 8 6 For The Beam Shown In Figure P8 6 Calculate The Maximum Deflection The System Parameters Are Given By Di 1 (35.11 KiB) Viewed 42 times

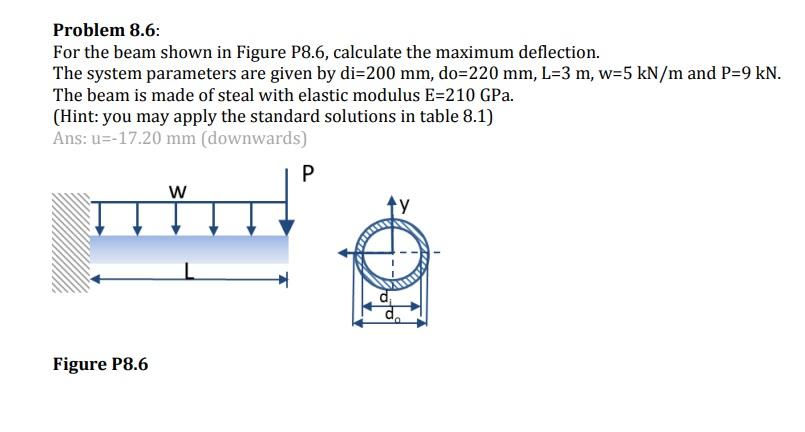

Problem 8.6: For the beam shown in Figure P8.6, calculate the maximum deflection. The system parameters are given by di-200 mm, do=220 mm, L=3 m, w=5 kN/m and P=9 kN. The beam is made of steal with elastic modulus E-210 GPa. (Hint: you may apply the standard solutions in table 8.1) Ans: u=-17.20 mm (downwards) P W Figure P8.6 m
