The simply supported beam consists of a W10 x 30 structural steel wide-flange shape [E = 29,000 ksi; / = 170 in.4]. Assu
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
The simply supported beam consists of a W10 x 30 structural steel wide-flange shape [E = 29,000 ksi; / = 170 in.4]. Assu

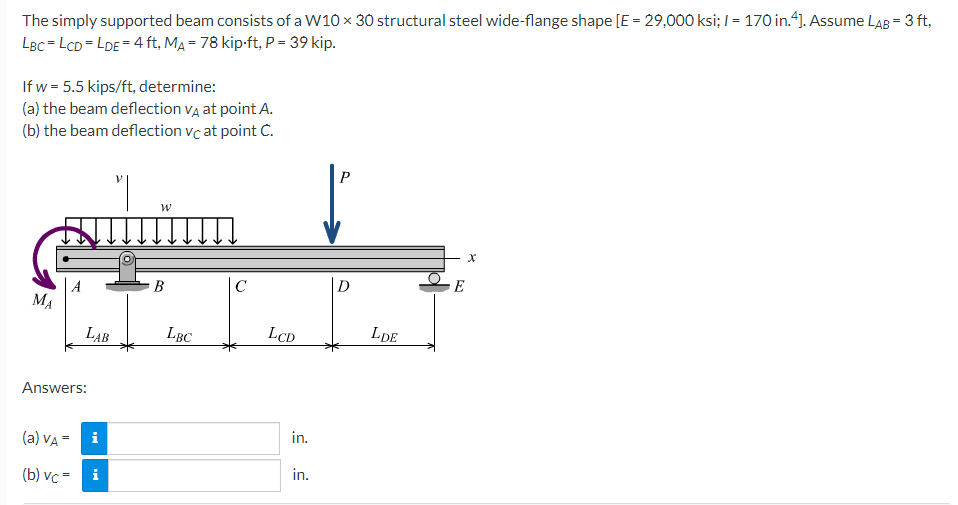

The simply supported beam consists of a W10 x 30 structural steel wide-flange shape [E = 29,000 ksi; / = 170 in.4]. Assume LAB = 3 ft, LBC=LCD=LDE=4 ft, MA = 78 kip-ft, P = 39 kip. If w = 5.5 kips/ft, determine: (a) the beam deflection VÀ at point A. (b) the beam deflection vc at point C. P | с МА Answers: (a) VA = (b) vc= LAB i i W B LBC LCD in. in. LDE E
